Product technical parameters

Product Introduction

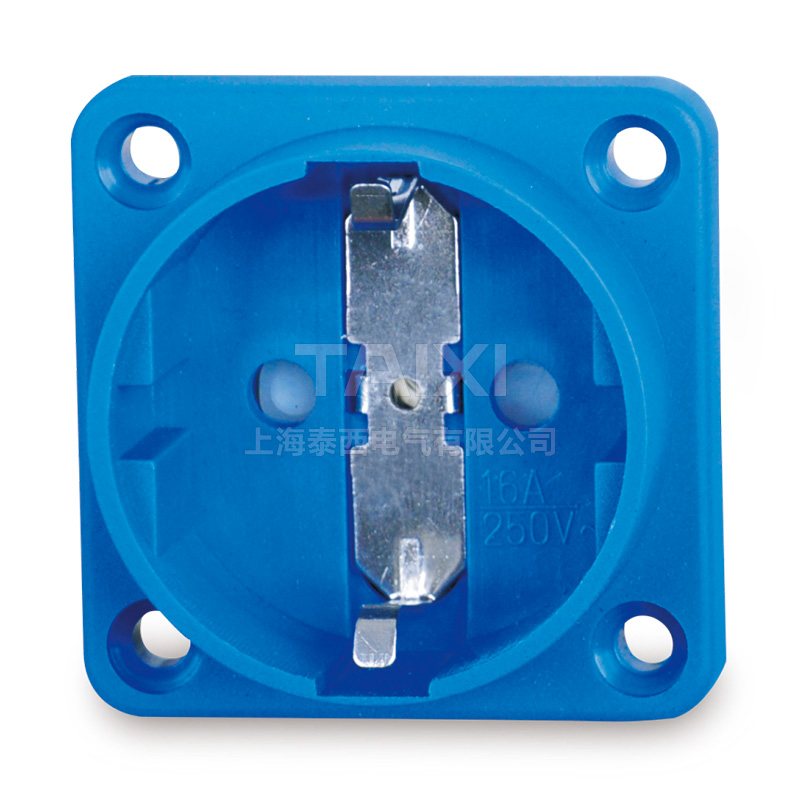

SCHUKO Socket

Model & Specification
16A/2P-10749 IP44 230V
16A/2P-10754 IP44 230V
16A/2P-10837 IP44 230V
16A/2P-10838 IP44 230V
16A/2P-10839 IP44 230V
16A/2P-10840 IP44 230V
16A/2P-10841 IP44 230V

Model & SPEC Table

Color A V Protective Baffle Clamping Insert Screw Terminal
Gray 16 230 NO 11010 11030
Blue 16 230 NO 11011 11031
Black 16 230 NO 11012 11032
Red 16 230 NO 11013 11033
Gray 16 230 YES 11060 -
Blue 16 230 YES 11061 11081

Hinged cover, 3 clamping insertion ends or 3 tail screw connection terminals, the cross-sectional area of the wire is 1.5-2.5 mm sq, and the flange has 4 mounting holes.

△IP 45

Additional socket, German standard

Compliance with European International Standards
For other colors, please write to inquire.

Dimension diagram：L001
Color A V Protective Baffle Clamping Insert Screw Terminal
Blue 16 230 NO 11511 11531
Black 16 230 NO 11512 11532
Blue 16 230 YES 11561 11581

Hinged cover, 3 clamping insertion ends or 3 tail screw connection terminals, the cross-sectional area of the wire is 1.5-2.5 mm sq, and the flange has 4 mounting holes.

△IP 20

Additional socket, German standard

Compliance with European International Standards
For other colors, please write to inquire.

Dimension diagram：L002
Color A V Protective Baffle Clamping Insert Screw Terminal
Gray 16 230 NO 11110 -
Blue16 230 NO 11111 -
Gray 16 230 YES 11160 11180
Blue 16 230 YES 11161 11181
Black16 230 YES 11162 11182
Blue 16 230 NO 11611 11631
Blue 16 230 YES 11661 11681

Hinged cover, 3 clamping insertion ends or 3 tail screw connection terminals, the cross-sectional area of the wire is 1.5-2.5 mm sq, and the flange has 4 mounting holes.

△IP 44
Protective Grounding European Additional Socket, French/Belgian Standard

△IP 20
Protective Grounding European Additional Socket, French/Belgian Standard
Dimension diagram：L002

Compliance with French/Belgian Standard
For other colors, please write to inquire.
A V Screw Terminal
16 250 16021

△IP 44
Chinese National Standard (CNS) Socket

Compliance with Chinese National Standard.
For other colors, please write to inquire.
Dimension diagram：L004
Color A V Clamping Insert Screw Terminal
Black 13 230 - 10713

Hinged cover, 3 clamping insertion ends or 3 tail screw connection terminals, the cross-sectional area of the wire is 1.5-2.5 mm sq, and the flange has 4 mounting holes.

△IP 44
Protective Grounding European Additional Socket, International Standard

Compliance with European International Standards
For other colors, please write to inquire.

Dimension diagram：L005

Structure Diagram

Dimension diagram：K001
Current(A) 16
Pole(P) 2
Dimensions a 105
b 42
c 19
d 41
e 18.8
Dimension diagram：L001
Current(A) 16
Dimensions a 61
b 50
c 50
d 38
e 38
f 4.5
g 24..2
h 23
k 21.7
l 44.5
Dimension diagram：L002
Current(A) 16
Dimensions a 61
b 50
c 50
d 38
e 38
f 4.5
g 24..2
h 23
k 21.7
l 44.5
Dimension diagram：L003
Current(A) 16
Dimensions a 61
b 50
c 50
d 38
e 38
f 4.5
g 24..2
h 23
k 21.7
l 44.5
Dimension diagram：L004
Current(A) 16
Dimensions a 61
b 50
c 50
d 38
e 38
f 4.5
g 24..2
h 23
k 21.7
l 44.5
Dimension diagram：L005
Current(A) 13
Dimensions a 60
c 42.5
e 42.5
f 4.2
i 53
Product package& size&weight
Relevant information
Product related< video
