Product technical parameters

Product Introduction

Name:Waterproof Socket with Switch
Model:TXS-M
Color:Gray
Type:4P Power Socket with Switch
IP Grade:IP66
Specifications: 20A 500V
Certificate:CE
Housing:Industrial Plastic PC
Electrical Conductor:Copper
Outlet:Australian Standard 4pins
Feature:Waterproof Socket(supporting waterproof plug)
Rated Current:20(A)
Rated Voltage:250-500(V)

Model & Specification

16A/3P TXS-M46001 IP66 230V
16A/4P TXS-M46002 IP66 400V
32A/4P TXS-M46003 IP66 400V
16A/3P TXS-M66001 IP66 230V
16A/4P TXS-M66002 IP66 400V
32A/4P TXS-M66003 IP66 400V
32A/5P TXS-M66004 IP66 400V
16A/3P TXS-M126001 IP66 230V
16A/3P TXS-M126002 IP66 230V
16A/4P TXS-M126002 IP66 400V
16A/5P TXS-M126002 IP66 400V
16A/3P TXS-M126003 IP66 230V
16A/4P TXS-M126003 IP66 400V
32A/5P TXS-M126003 IP66 400V
32A/3P TXS-M126004 IP66 230V
16A/4P TXS-M126004 IP66 400V
32A/5P TXS-M126004 IP66 400V

Model & SPEC Table

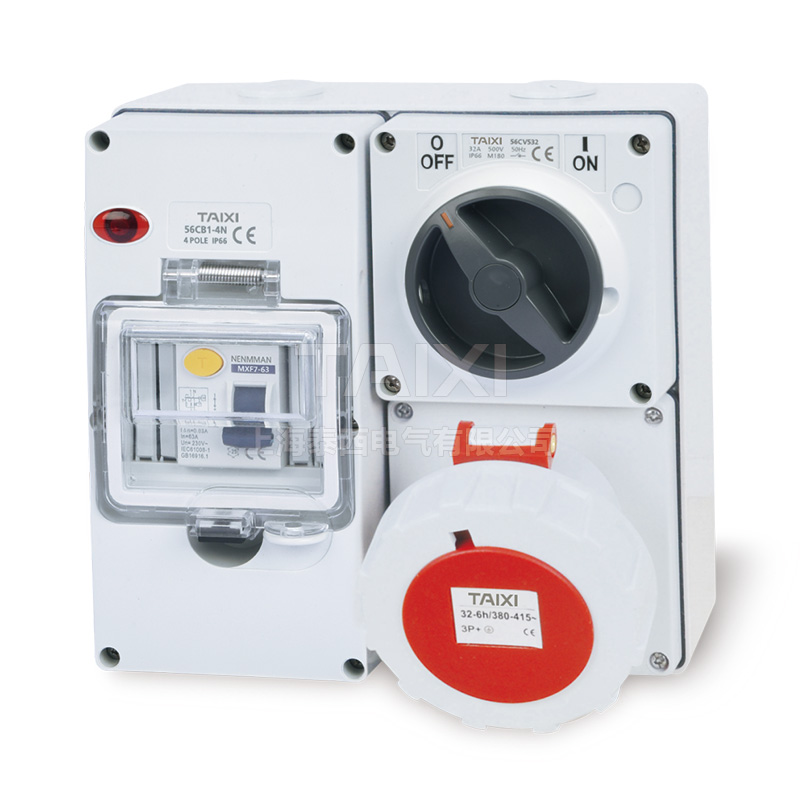

TXS-M46001 TXS-M46002 TXS-M46003 TXS-M46004
IP66
56CB1-4N - 1pc
Disconnector  - 1pc
CEE/IEC socket 16A,3P,230V - 1pc
MCB 16A,1P,C - 1pc
IP66
56CB1-4N - 1pc
Disconnector - 1pc
CEE/IEC socket 16A,4P,400V - 1pc
MCB 16A,3P,C - 1pc
IP66
56CB1-4N - 1pc
Disconnector - 1pc
CEE/IEC socket 32A,4P,400V - 1pc
MCB 32A,3P,C - 1pc
IP66
56CB1-4N - 1pc
Disconnector - 1pc
CEE/IEC socket 32A,5P,400V - 1pc
MCB 32A,3P,C - 1pc
Dimension diagram:x2

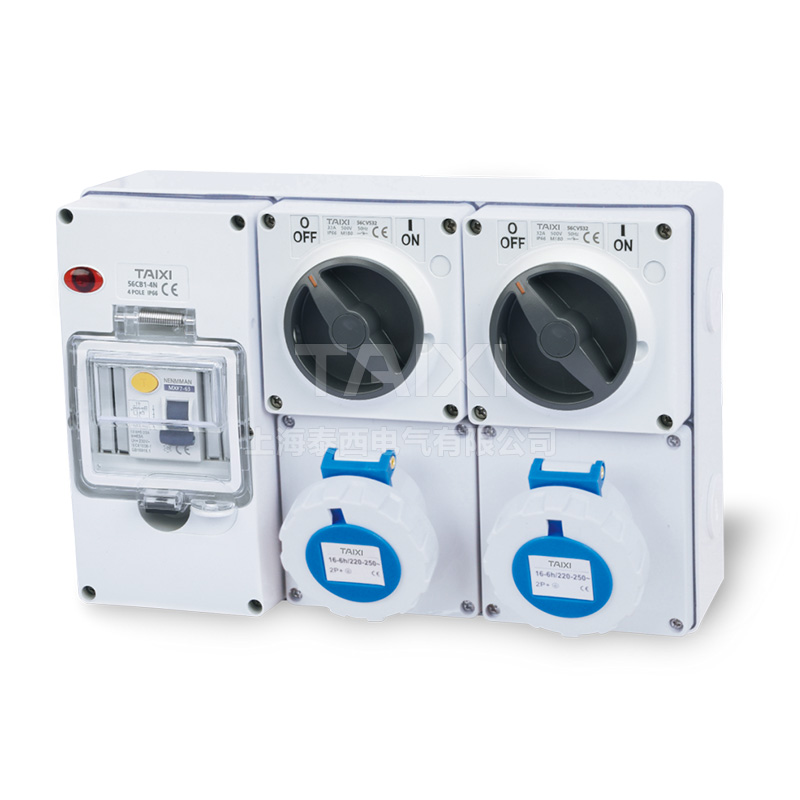

TXS-M66001 TXS-M66002 TXS-M66003 TXS-M66004
IP66
56CB1-4N - 1pc
Disconnector  - 2pcs
CEE/IEC socket 16A,3P,230V - 2pcs
MCB 32A,1P,C - 1pc
IP66
56CB1-4N - 1pc
Disconnector  - 2pcs
CEE/IEC socket 16A,4P,400V - 2pcs
MCB 32A,3P,C - 1pc
IP66
56CB1-4N - 1pc
Disconnector  - 2pcs
CEE/IEC socket 16A,4P,400V - 1pc
CEE/IEC socket 16A,5P,400V - 1pc
MCB 32A,3P,C - 1pc
IP66
56CB1-4N - 1pc
Disconnector  - 2pcs
CEE/IEC socket 16A,4P,400V - 2pcs
MCB 32A,3P,C - 1pc
Dimension diagram:x3

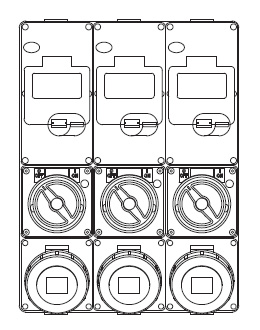

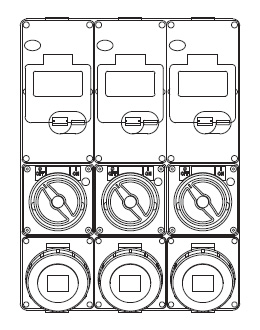

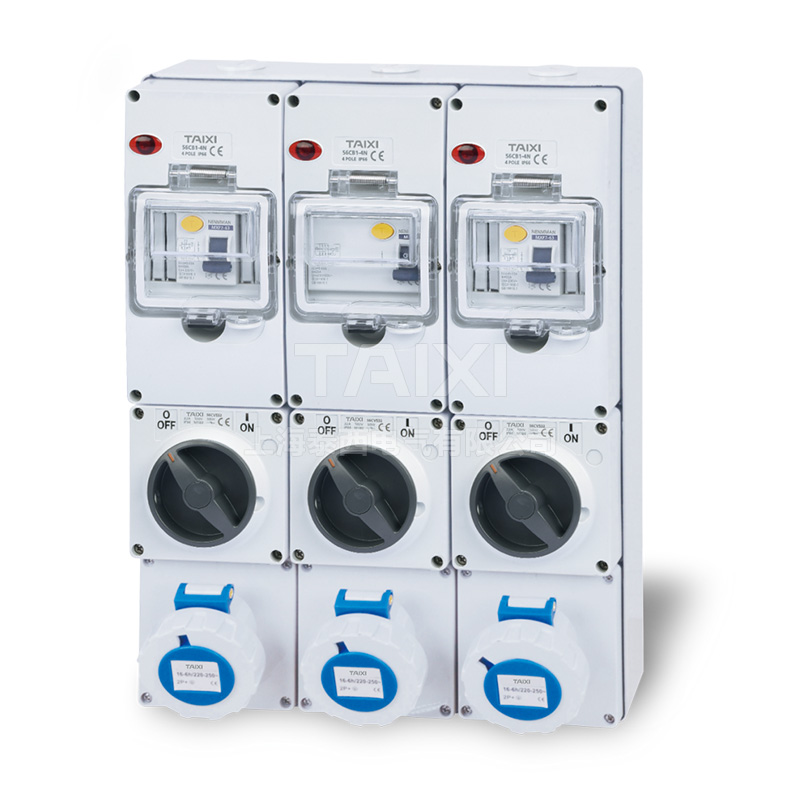

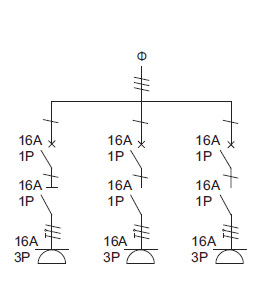

TXS-M126001 TXS-M126002 TXS-M126003 TXS-M126004
IP66
56CB1-4N - 3pcs
Disconnector - 3pcs
CEE/IEC socket 16A,3P,230V - 3pcs
MCB 16A,1P,C - 3pcs

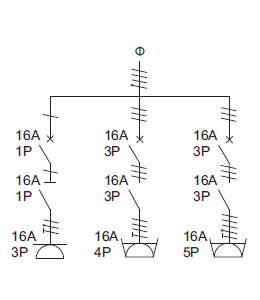

IP66
56CB1-4N - 3pcs
Disconnector  - 3pcs
CEE/IEC socket 16A,3P,230V - 1pc
CEE/IEC socket 16A,4P,400V - 1pc
CEE/IEC socket 16A,5P,400V  - 1pc
MCB 16A,1P,C - 1pc
MCB 16A,3P,C - 2pcs

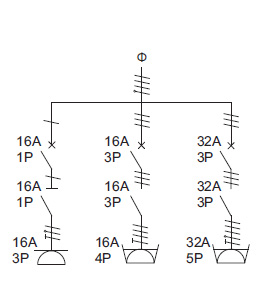

IP66
56CB1-4N - 3pcs
Disconnector - 3pcs
CEE/IEC socket 16A,3P,230V - 1pc
CEE/IEC socket 16A,4P,400V - 1pc
CEE/IEC socket 32A,5P,400V - 1pc
MCB 16A,1P,C - 1pc
MCB 16A,3P,C - 1pc
MCB 32A,3P,C - 1pc
IP66
56CB1-4N - 1pc
Disconnector  - 3pcs
CEE/IEC socket 16A,4P,400V - 2pcs
CEE/IEC socket 32A,3P,230V - 1pc
CEE/EC socket 32A,5P,400V - 1pc
MCB 16A,1P,C - 1pc
MCB 32A,3P,C - 2pcs

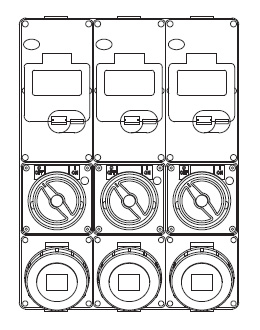

Dimension diagram:x5

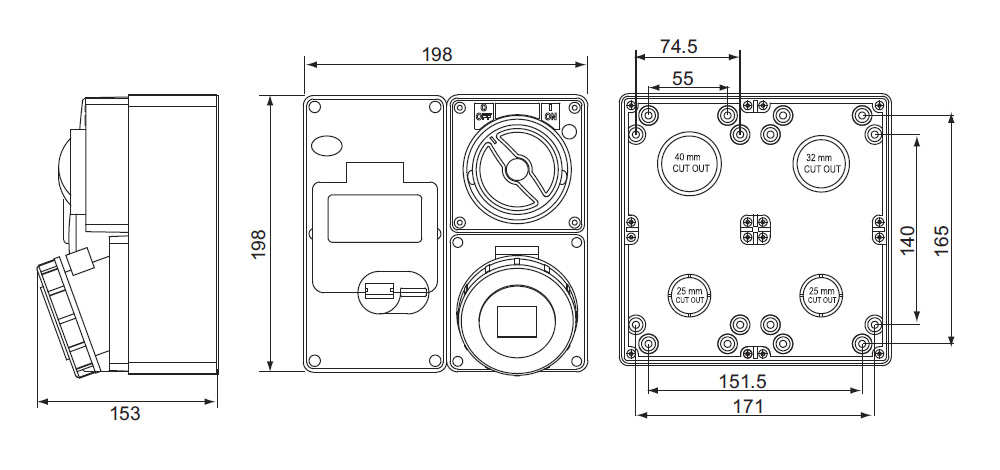

Dimension Diagram

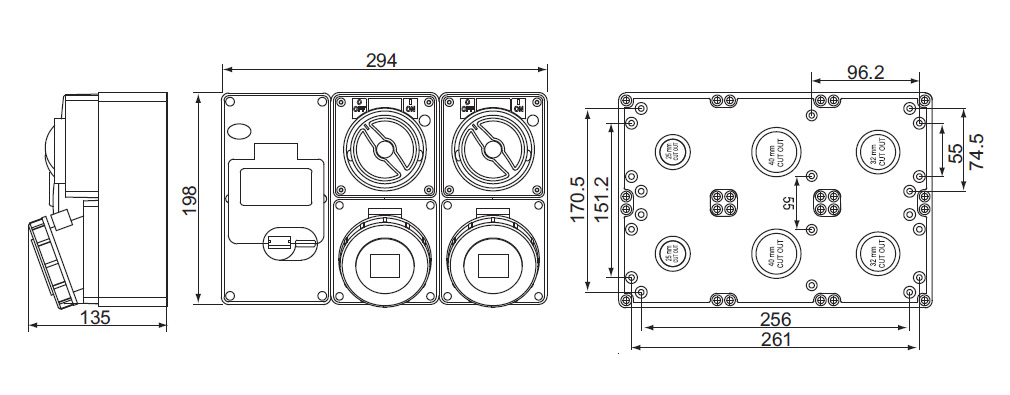

Dimension diagram:x2

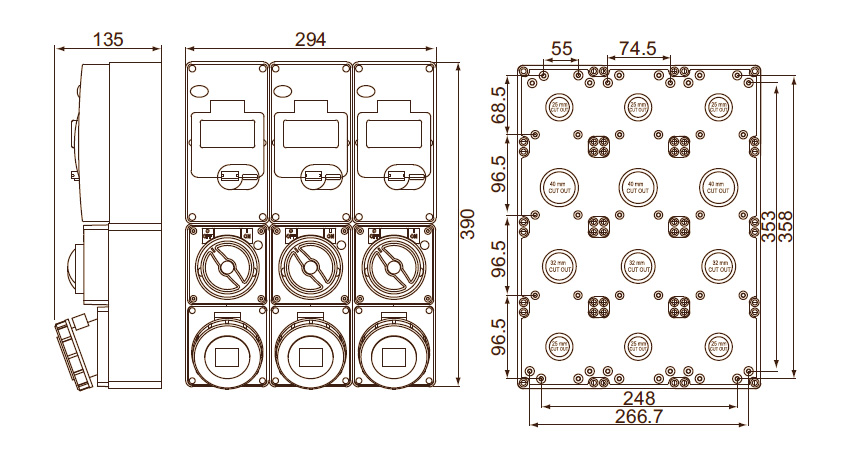

Dimension diagram:x3
Dimension diagram:x5
