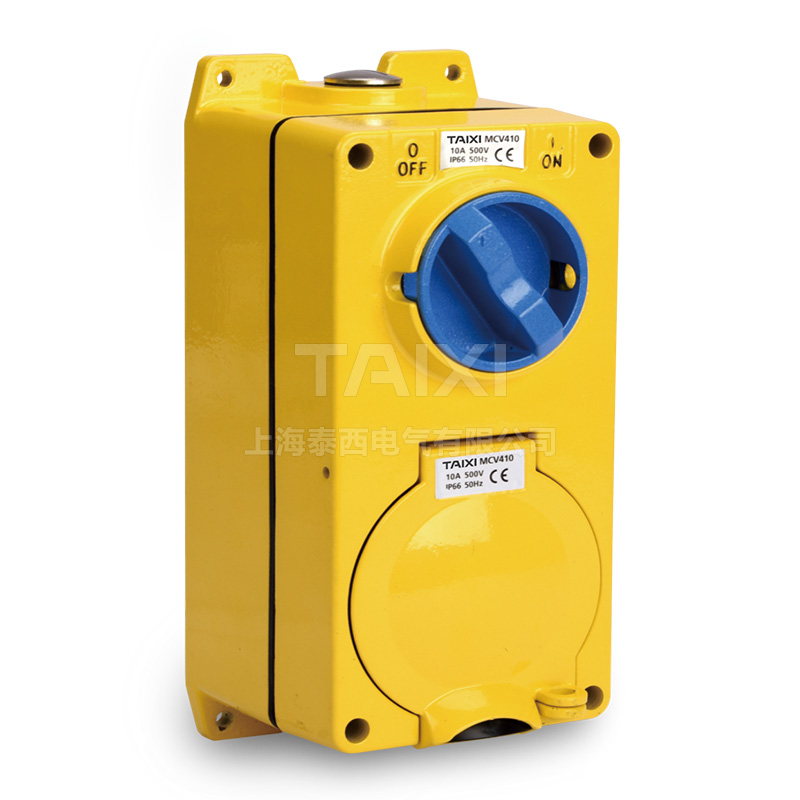

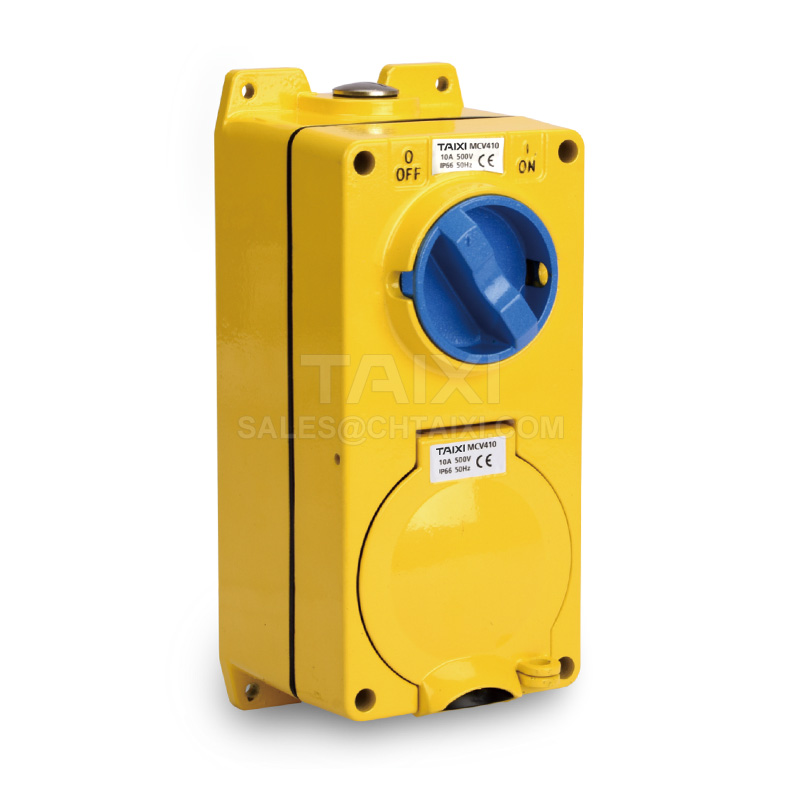

Metal Industrial Switch Socket




Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

1. The product is made of high-crystalline metal with high insulation, anti-impact and ultraviolet resistance.
2. Internal wiring of socket and switch, saving assembly time
3. The switch with indicator can directly show whether the current passes through or not.
4. Waterproof ring and waterproof cap ensure that the product reaches IP66 waterproof grade.
5. Opening the socket users can intuitively see the internal working environment of the socket and pin configuration.

Product Overview

1、Waterproof Grade:IP66;
2、Standard Color:Yellow;
3、Applicable Standard:AS/NZS3123:2005AS/NZS3133:2008
4、Applicable Environment:moistureproof, waterproof, dustproof, anti-corrosion, can work in extremely harsh environment.
5、The whole product series includes 3 pins, 4 pins and 5 pins; 10A~50A

Model & Specification

10A/3P-MCV310 IP66 250V
15A/3P-MCV315 IP66 250V
20A/3P-MCV320 IP66 250V
32A/3P-MCV332 IP66 250V
10A/4P-MCV410 IP66 500V
20A/4P-MCV420 IP66 500V
32A/4P-MCV432 IP66 500V
40A/4P-MCV440 IP66 500V
50A/4P-MCV450 IP66 500V
10A/5P-MCV510 IP66 500V
20A/5P-MCV520 IP66 500V
32A/5P-MCV532 IP66 500V
40A/5P-MCV540 IP66 500V
50A/5P-MCV550 IP66 500V

Structure & Technical Parameters


MCV310 MCV315 MCV320 MCV332 MCV410

3P 10A 250V

3P 15A 250V

3P 20A 250V

3P 32A 250V

4P 10A 500V
MCV420 MCV432 MCV440 MCV450 MCV510

4P 20A 500V

4P 32A 500V

4P 40A 500V

4P 50A 500V

5P 10A 500V
MCV520 MCV532 MCV540 MCV550

5P 20A 500V

5P 32A 500V

5P 40A 500V

5P 50A 500V

Dimension diagram:x4

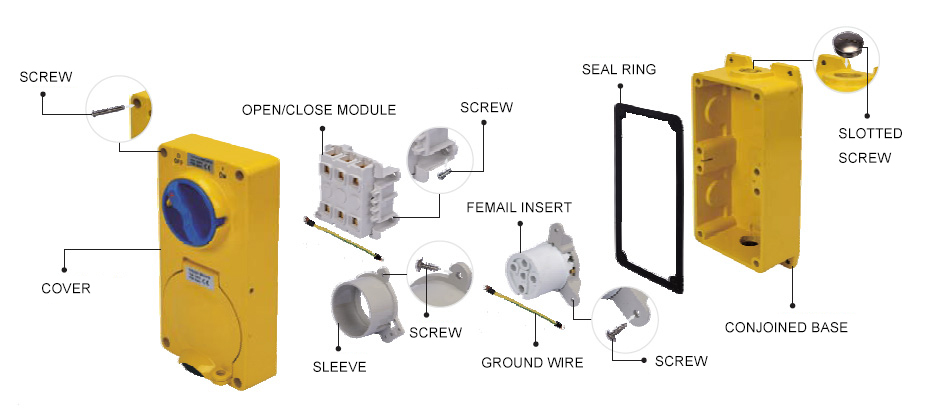

Structure diagram:c4

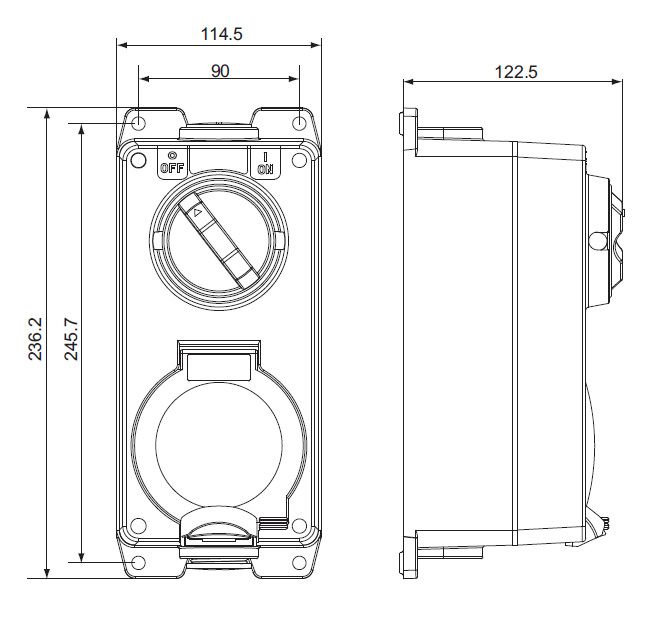

Dimension Diagram

Dimension diagram :x4

Structure Diagram


Structure diagram :c4
