MP Waterproof Metal Plug
Widely used in buildings, factories, outdoor power distribution, and other places with high humidity and dust


WhatsApp: 0086-15669851253

  • Product technical
  • Product package&
  • Relevant
  • Product related
Product technical parameters

Product Introduction

1. The product is made of high-crystalline metal with high insulation, anti-impact and ultraviolet resistance.
2. Internal wiring of socket and switch, saving assembly time
3. The switch with indicator can directly show whether the current passes through or not.
4. Waterproof ring and waterproof cap ensure that the product reaches IP66 waterproof grade.
5. Opening the socket users can intuitively see the internal working environment of the socket and pin configuration.

Product Overview

1、Waterproof Grade:IP66;
2、Standard Color:Yellow;
3、Applicable Standard:AS/NZS3123:2005AS/NZS3133:2008
4、Applicable Environment:moistureproof, waterproof, dustproof, anti-corrosion, can work in extremely harsh environment.
5、The whole product series includes 3 pins, 4 pins and 5 pins; 10A~50A

Model & Specification

20A/3P-MP320 IP66 250V
32A/3P-MP332 IP66 250V
10A/4P-MP410 IP66 500V
20A/4P-MP420 IP66 500V
32A/4P-MP432 IP66 500V
40A/4P-MP440 IP66 500V
50A/4P-MP450 IP66 500V
10A/5P-MP510 IP66 500V
20A/5P-MP520 IP66 500V
32A/5P-MP532 IP66 500V
40A/5P-MP540 IP66 500V
50A/5P-MP550 IP66 500V

Structure & Technical Parameters

MP320 MP332 MP410 MP420 MP432

3P 20A 250V

3P 32A 250V

4P 10A 500V

4P 20A 500V

4P 32A 500V
MP440 MP450 MP510 MP520 MP532

4P 40A 500V

4P 50A 500V

5P 10A 500V

5P 20A 500V

5P 32A 500V
MP540 MP550

5P 40A 500V

5P 50A 500V
Dimension diagram:x1
Structure diagram:c1

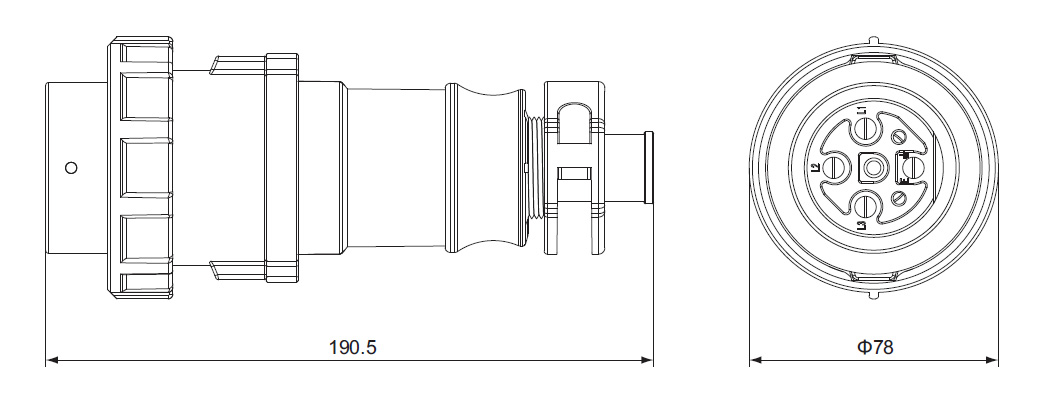

Dimension Diagram

Dimension diagram :x1

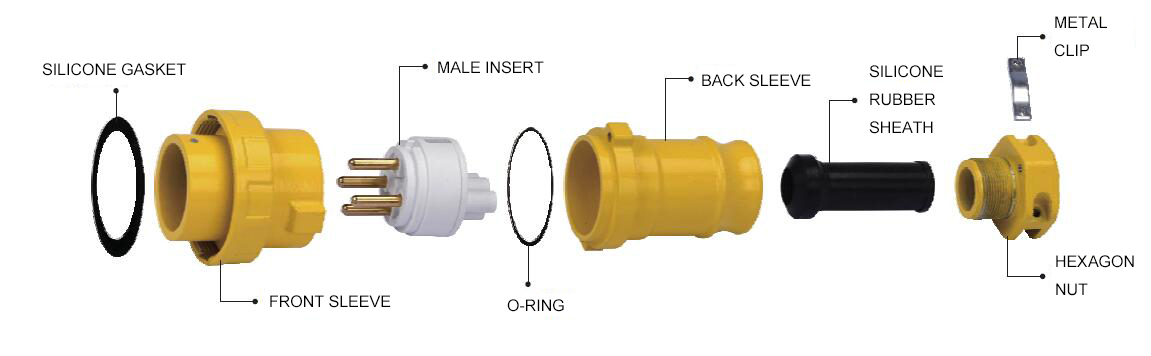

Structure Diagram

Structure diagram :c1
Product package& size&weight
Relevant information
Product related< video
