China Maintenance Socket Box Power overhaul Box

Product technical parameters

Product Introduction

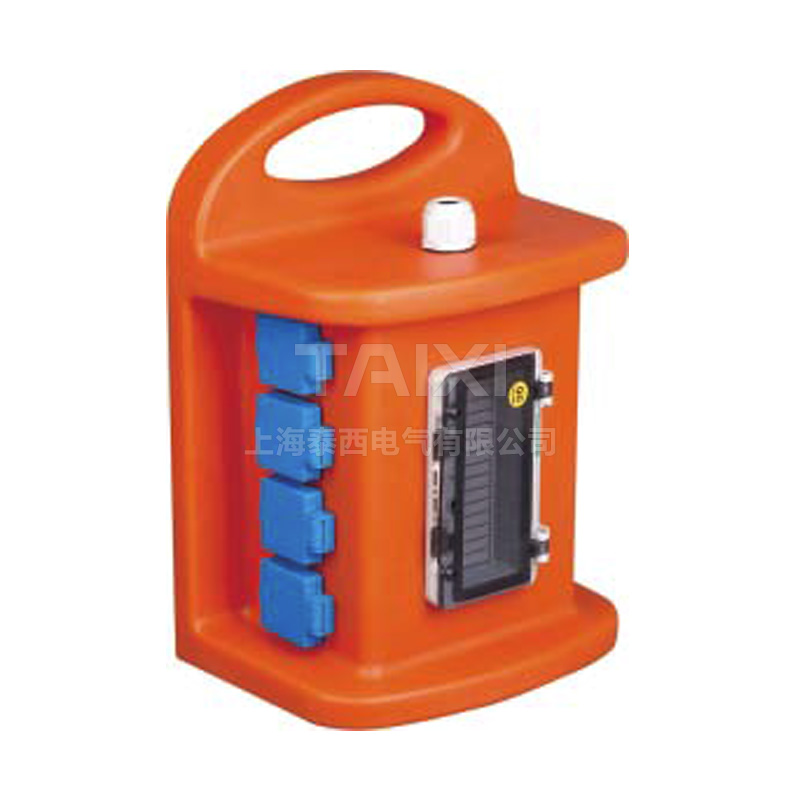

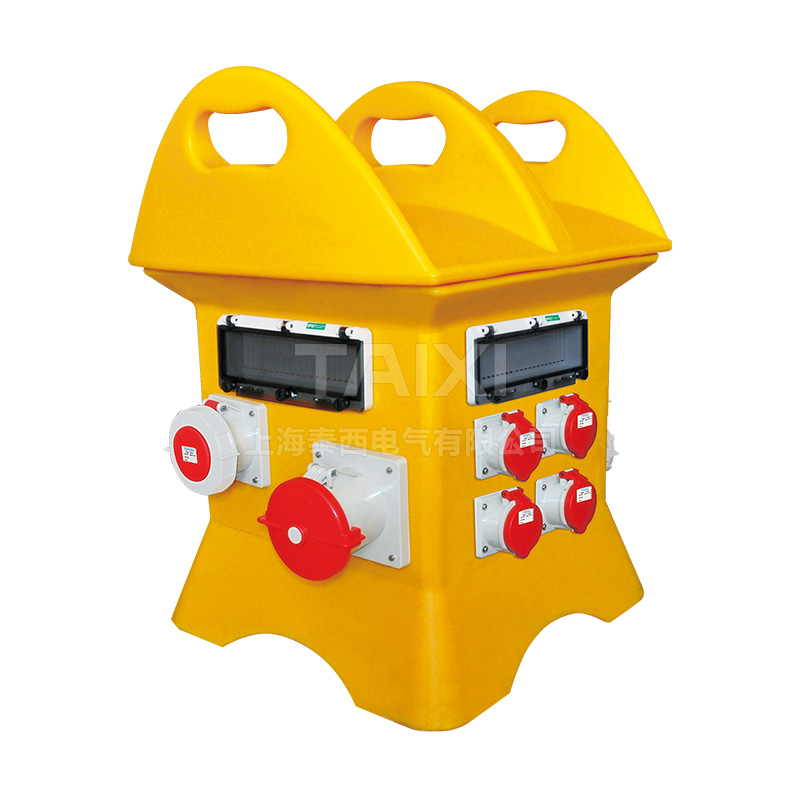

TX series portable power supply maintenance boxes conform to standard GB7251.3-2006 - Low Voltage Switchgear and Control Equipment Complete - Part 3: Particular Requirements for Low-Voltage Switchgear Sets and Control Equipment _ Distribution Boards Accessible to Non-Professional Personnel. They are suitable for distribution networks with frequencies of 50-60 Hz and voltage of 660 V and below. They have functions of overload, short circuit and leakage protection, and provide appropriate power interface to multi-circuit electrical equipment.

TX series power supply overhaul boxes are widely used in petroleum, chemical, metallurgical, power plant, coal mine, machinery, textile, port and wharf industries, especially in the area of rail transit tunnel section overhaul.

The box is made of P material (polyethylene), which has many advantages, such as beautiful appearance, corrosion resistance, compression resistance, waterproof, moisture-proof, anti-slip, high dielectric property, good electrical insulation performance and long service life.

This product has a perspective operation window, no need to open the door, handy and safe.

Technical Parameters

Nominal insulation voltage：400VAC（660V）

Rated operating voltage：230/400VAC、440VDC

Rated operating frequency：50Hz

IP grade：IP44、IP65
Single circuit output current：10A、16A、32A、63A、125A, etc.
Single circuit output voltage：20-25V、40-50V、100-130V、200-250V、380-480V、500-660V

Output socket poles：1P+N+PE、3P+PE、3P+N+PE

Suitable environment：Temperature -30°C~+40℃ indoor and outdoor.

Model & SPEC Table

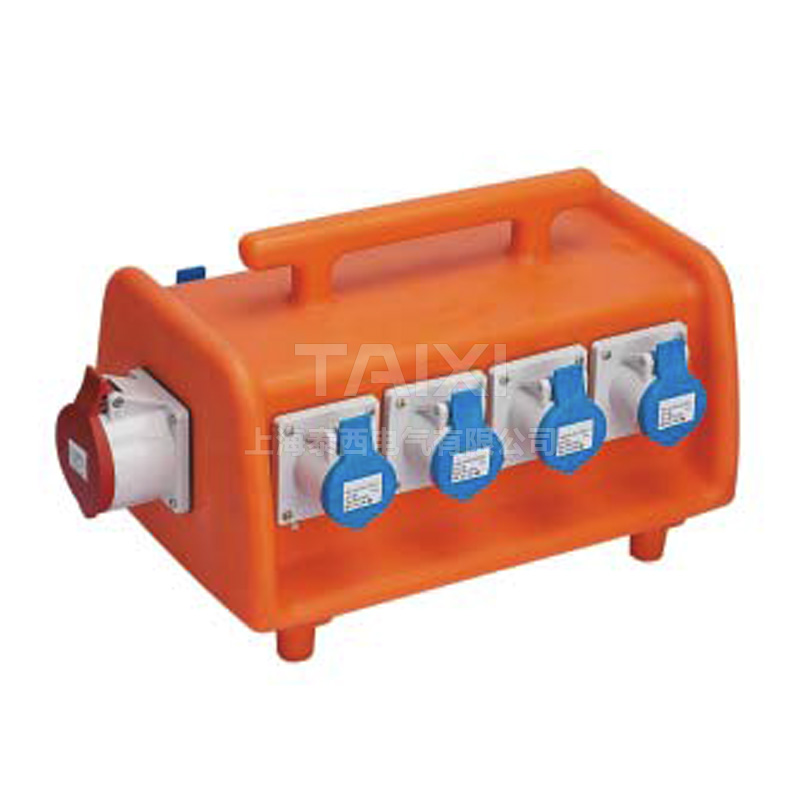

TⅩ-BZS3-1001		TⅩ-BZS3-1002

IP44-IP65
Side A CEE/IEC Socket 16A，3P，230V 2pcs	Side B CEE/IEC Socket 16A，4P，400V 1pc	Side A CEE/IEC Socket 32A，3P，230V 2pcs	Side B CEE/IEC Socket 32A，4P，400V 1pc
Side C MCB 16A，1P，C 2pcs MCB 16A，3P，C 2pcs	Side D CEE/IEC Socket 16A，5P，400V 1pc	Side C MCB 32A，1P，C 2pcs MCB 32A，3P，C 2pcs	Side D CEE/IEC Socket 32A，5P，400V 1pc

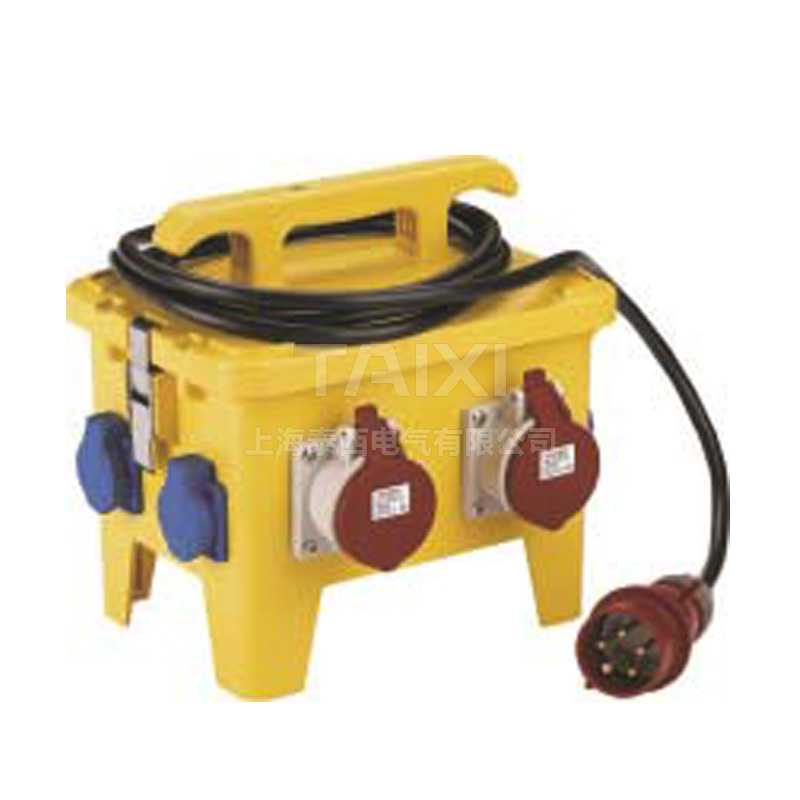

TX-BZS3-1003		TX-BZS3-1004

IP44-IP65
Side A CEE/IEC Socket 16A，3P, 230V 3pcs	Side B ALCI 16A，4P，0.03A 1pc	Side A CEE/IEO Socket 32A，3P，230V 2pcs	Side B ALCI 32A，4P，0.03A 1pc
Side C CEE/IEC Socket 16A，3P，230V 2pcs CEE/IEC Additional device plug 16A，3P，230V 1pc	Side D MCB 16A，1P，C 5pcs	Side C CEE/IEO Socket 16A，3P，230V 2pcs CEE/IEC Additional device plug 32A，5P，400V 1pc	Side D MCB 16A，1P，C 2pcs MCB 32A，1P，C 2pcs

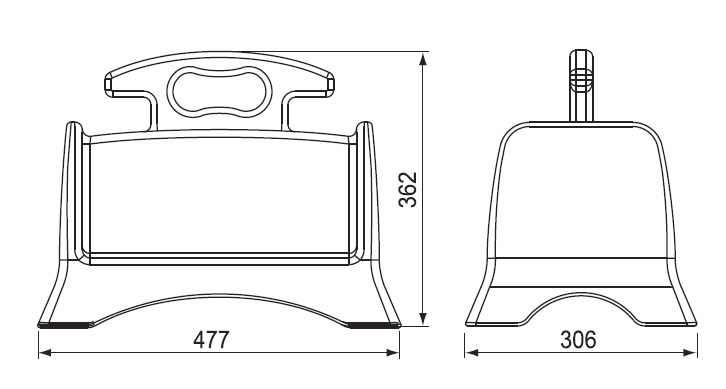

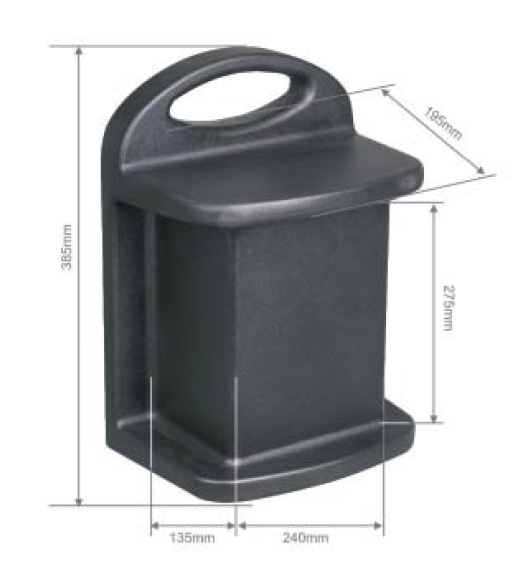

Dimension diagram：x1

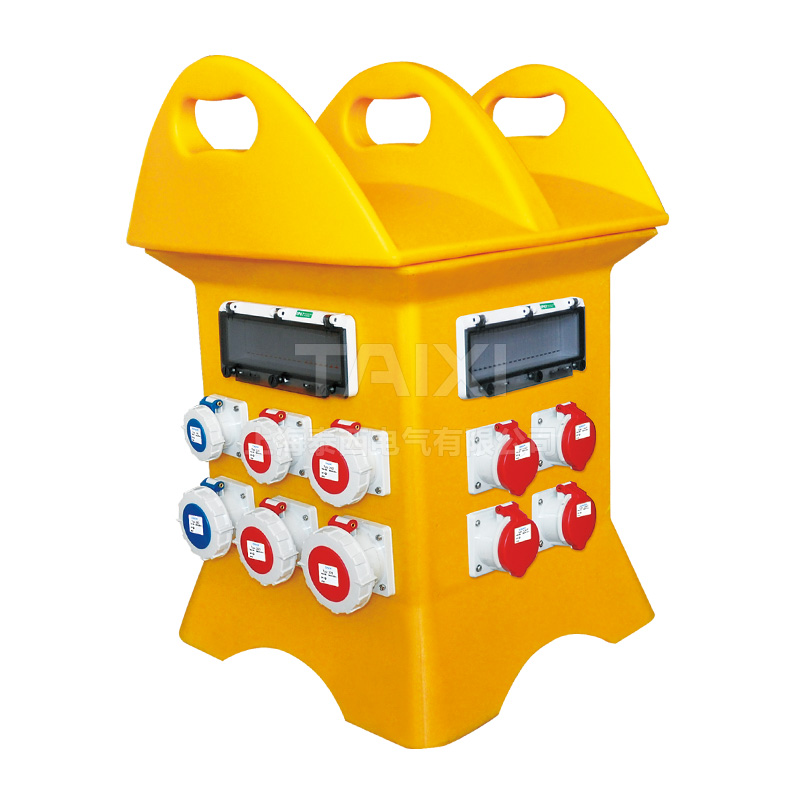

TX-BZS3-2001 Side A	TX-BZS3-2001 Side B	TX-BZS3-2001 Side C	TX-BZS3-2001 Side D

IP44-IP65
CEE/IEC Additional device plug 63A，5P，400V 1pc MCB 63A，3P，C 1pc	CEE/IEC Socket 16A，3P，230V 3pcs MCB 16A，1P，C 3pcs	CEE/IEC Socket 16A，4P，400V 3pcs MCB 16A，3P，C 3pcs	CEE/IEC Socket 16A，5P，400V 3pcs MCB 16A，3P，C 3pcs

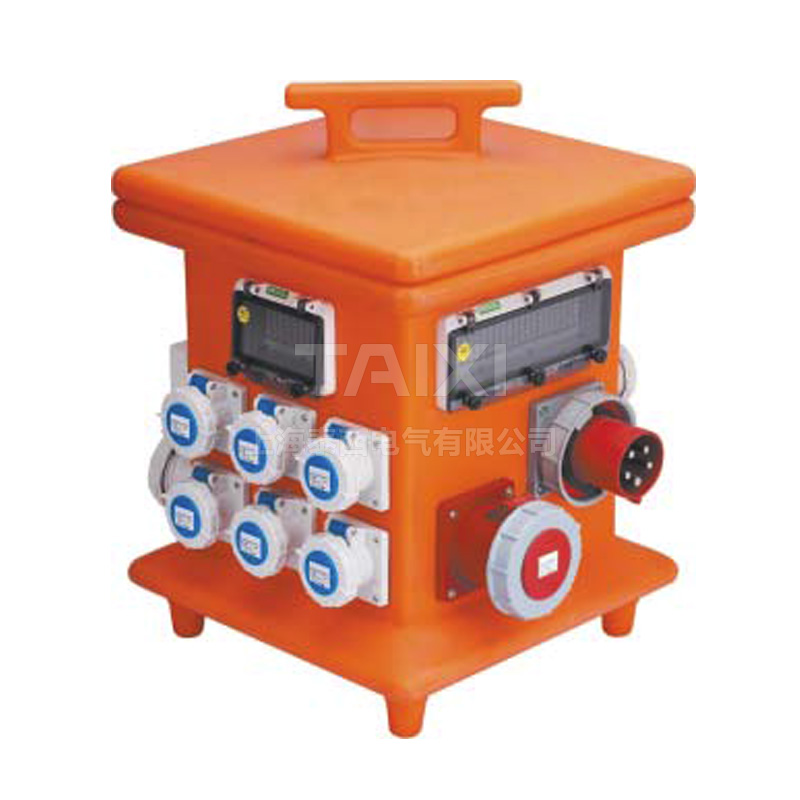

TX-BZS3-2002 Side A	TX-BZS3-2002 Side B	TX-BZS3-2002 Side C	TX-BZS3-2002 Side D

IP44-IP65
CEE/IEC Additional device plug 63A，5P，400V 1pc MCB 63A，3P，C 1pc	CEE/IEC Socket 16A，3P，230V 3pcs MCB 16A，1P，C 3pcs	CEE/IEC Socket 16A，5P，400V 3pcs MCB 16A，3P，C 3pcs	CEE/IEC Socket 32A，5P，400V 2pcs MCB 32A，3P，C 2pcs

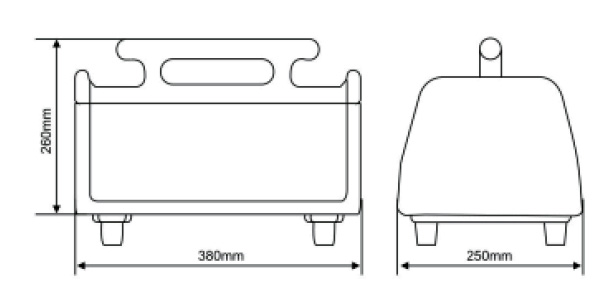

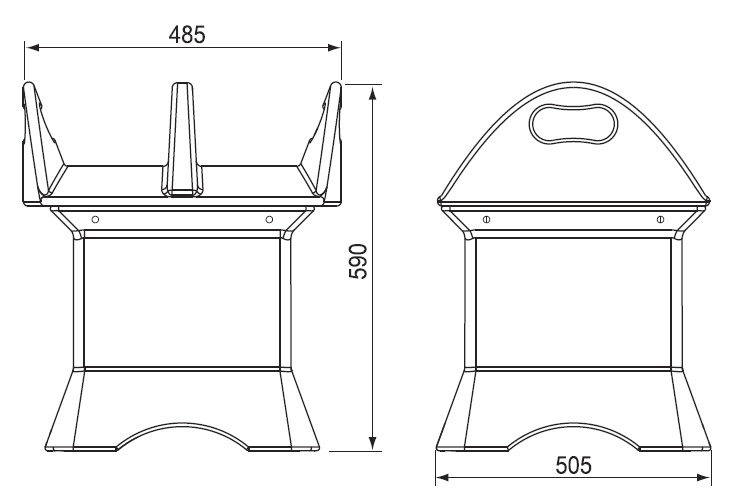

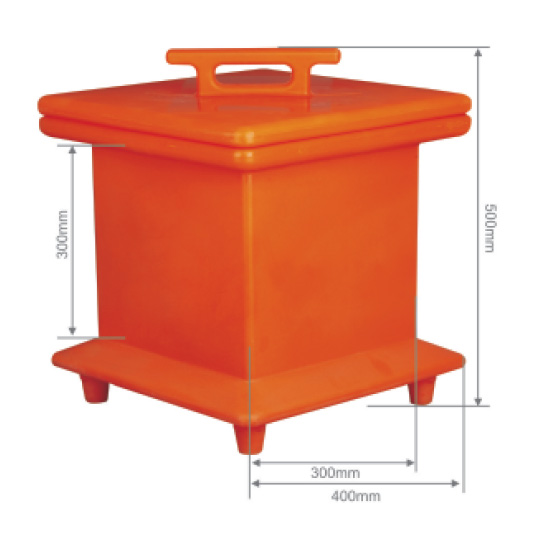

Dimension diagram：x2

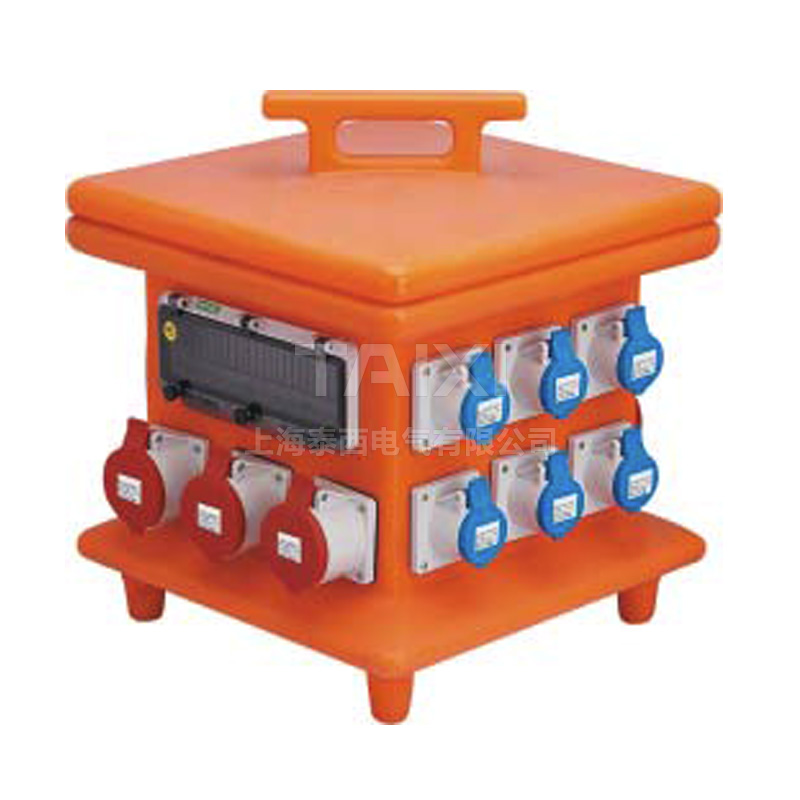

TX-BZS3-3001 Side A	TX-BZS3-3001 Side B	TX-BZS3-3001 Side C	TX-BZS3-3001 Side D

IP44-IP65
CEE/IEC Additional device plug 125A，5P，400V 1pc MCB 125A，3P，C 1pc	CEE/IEC Socket 16A，3P，230V 1pc CEE/IEC Socket 16A，4P，400V 1pc CEE/IEO Socket 16A，5P，400V 1pc CEE/IEC Socket 32A，3P，230V 1pc CEE/IEC Socket 32A，4P，400V 1pc CEE/IEO Socket 32A，5P，400V 1pc MCB 16A，1P，C 1pc MCB 32A，1P，C 1pc MCB 32A，3P，C 1pc MCB 63A，3P，C 1pc	CEE/IEC Socket 16A，3P，230V 1pc CEE/IEC Socket 16A，4P，400V 1pc CEE/IEC Socket 16A，5P，400V 1pc CEE/IEC Socket 32A，3P，230V 1pc CEE/IEC Socket 32A，4P，400V 1pc CEE/IEC Socket 32A，5P，400V 1pc MCB 16A，1P，C 1pc MCB 32A，1P，C 1pc MCB 32A，3P，C 1pc MCB 63A，3P，C 1pc	CEE/IEC Socket 63A，3P，230V 1pc CEE/IEC Socket 63A，5P，440V 1pc MCB 63A，1P，C 1pc MCB 63A，3P，C 1pc
TX-BZS3-3002 Side A	TX-BZS3-3002 Side B	TX-BZS3-3002 Side C	TX-BZS3-3002 D

IP44-IP65
CEE/IEC Additional device plug 125A，5P，400V 1pc MCB 125A，3P，C 1pc	CEE/IEC Socket 16A，3P，230V 2pcs CEE/IEC Socket 16A，5P，400V 1pc CEE/IEC Socket 32A，3P，230V 2pcs CEE/IEC Socket 32A，5P，400V 1pc MCB 16A，1P，C 2pcs MCB 16A，3P，C 1pc MCB 32A，1P，C 2pcs MCB 32A，3P，C 1pc	CEE/IEC Socket 16A，3P，230V 2pcs CEE/IEC Socket 16A，4P，400V 1pc CEE/IEC Socket 32A，3P，230V 2pcs CEE/IEC Socket 32A，4P，400V 1pc MCB 16A，1P，C 2pcs MCB 32A，1P，C 2pcs MCB 16A，3P，C 1pc MCB 32A，3P，C 1pc	CEE/IEC Socket 63A，3P，230V 1pc CEE/IEC Socket 63A，5P，440V 1pc MCB 63A，1P，C 1pc MCB 63A，3P，C 1pc

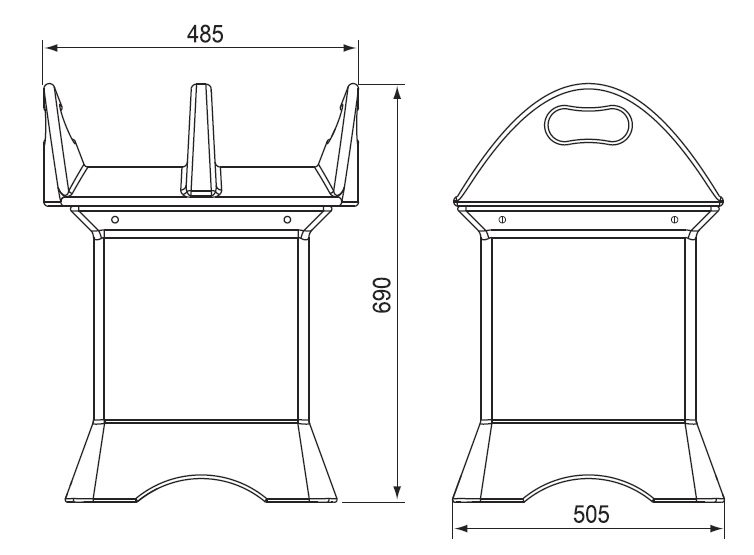

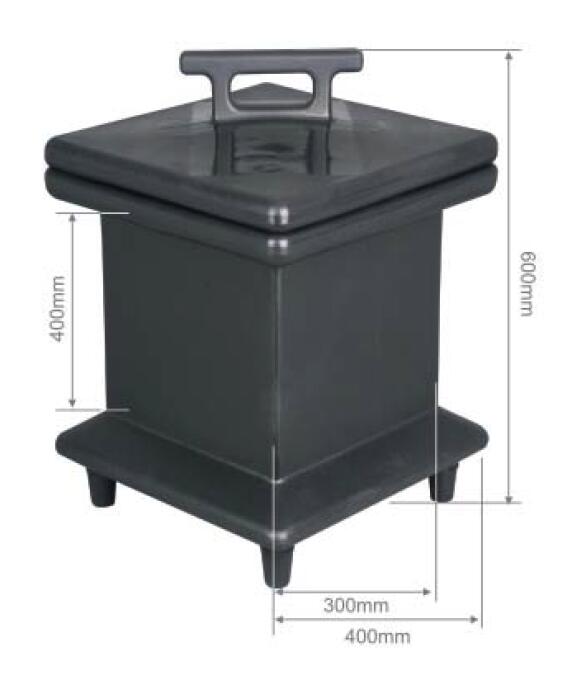

Dimension diagram：x3
