Product technical parameters

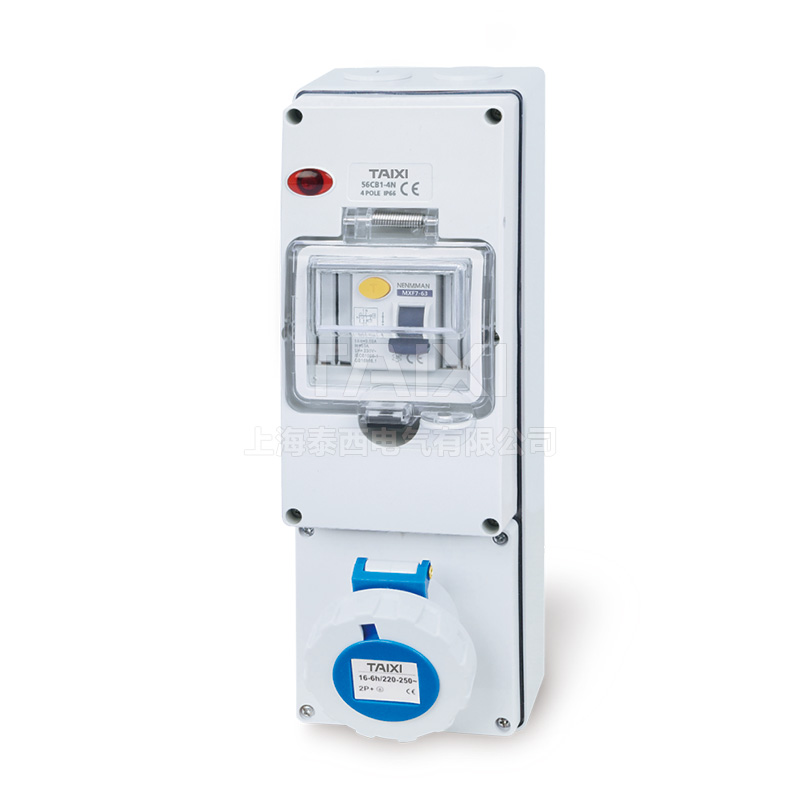

Product Introduction

Name:Waterproof Socket with Switch
Model:TXS-M
Color:Gray
Type:4P Power Socket with Switch
IP Grade:IP66
Specifications: 20A 500V
Certificate:CE
Housing:Industrial Plastic PC
Electrical Conductor:Copper
Outlet:Australian Standard 4pins
Feature:Waterproof Socket(supporting waterproof plug)
Rated Current:20(A)
Rated Voltage:250-500(V)

Model & Specification

16A/3P TXS-M36001 IP66 230V
16A/4P TXS-M36002 IP66 230V
32A/4P TXS-M36003 IP66 230V
32A/5P TXS-M36004 IP66 400V
16A/3P TXS-M96001 IP66 230V
16A/3P TXS-M96002 IP66 230V
16A/4P TXS-M96002 IP66 400V
16A/5P TXS-M96002 IP66 400V
16A/3P TXS-M96003 IP66 230V
16A/4P TXS-M96003 IP66 400V
32A/5P TXS-M96003 IP66 400V
16A/3P TXS-M96004 IP66 400V
32A/4P TXS-M96004 IP66 400V
32A/5P TXS-M96004 IP66 400V

Model & SPEC Table

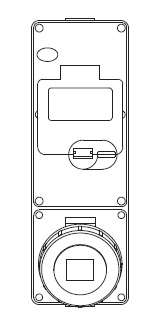

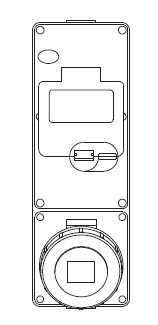

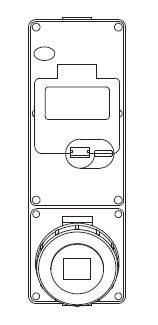

TXS-M36001 TXS-M36002 TXS-M36003 TXS-M36004
IP66
56CB1-4N - 1pc
CEE/IEC socket 16A,3P,230V - 1pc
MCB 16A,1P,C - 1pc
IP66
56CB1-4N - 1pc
CEE/IEC socket 16A,4P,400V - 1pc
MCB 16A,3P,C - 1pc
IP66
56CB1-4N - 1pc
CEE/IEC socket 32A,4P,400V - 1pc
MCB 32A,3P,C - 1pc
IP66
56CB1-4N - 1pc
CEE/IEC socket 32A,5P,400V - 1pc
MCB 32A,3P,C - 1pc

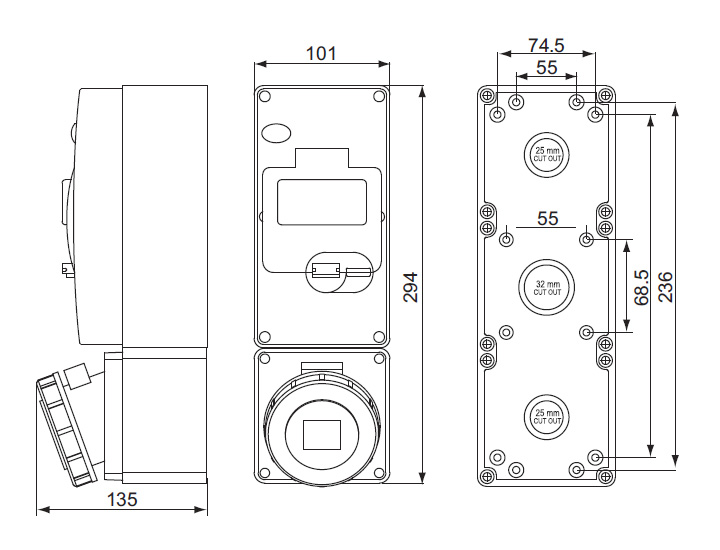

Dimension diagram:x1

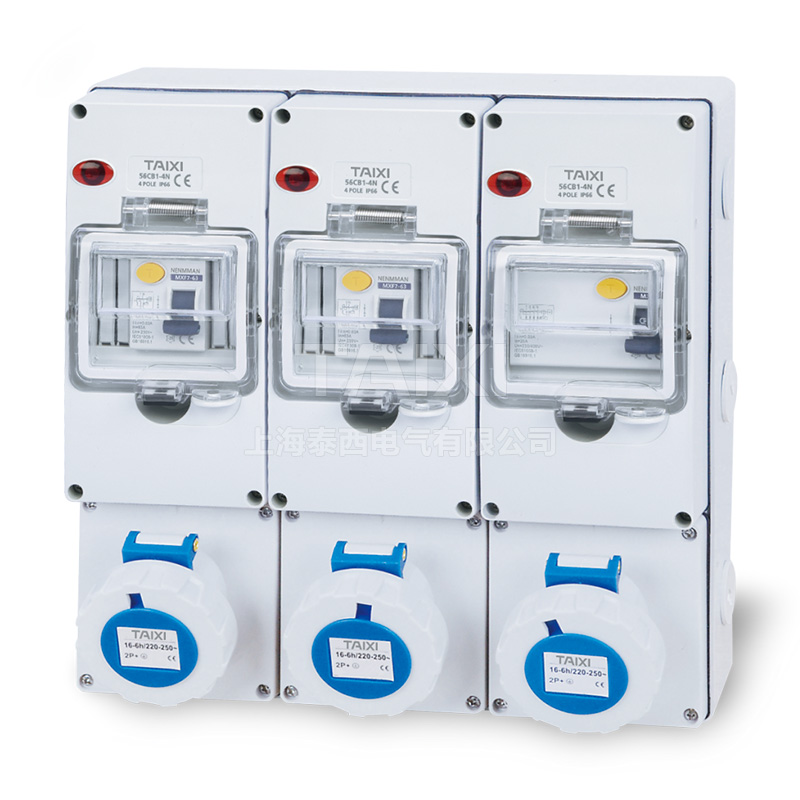

TXS-M96001 TXS-M96002 TXS-M696003 TXS-M96004
IP66
56CB1-4N - 3pcs
CEE/IEC socket 16A,3P,230V - 3pcs
MCB 16A,1P,C - 3pcs
IP66
56CB1-4N - 3pcs
CEE/IEC socket 16A,3P,230V - 1pc
CEE/IEC socket 16A,4P,400V - 1pc
CEE/IEC socket 16A,5P,400V - 1pc
MCB 16A,1P,C - 1pc
MCB 16A,3P,C - 2pcs
IP66
56CB1-4N - 3pcs
CEE/IEC socket 16A,3P,230V - 1pc
CEE/IEC socket 16A,4P,400V - 1pc
CEE/IEC socket 32A,5P,400V - 1pc
MCB 16A,1P,C - 1pc
MCB 16A,3P,C - 1pc
MCB 32A,3P,C - 1pc
IP66
56CB1-4N - 1pc
CEE/IEC socket 16A,3P,400V - 1pc
CEE/IEC socket 32A,4P,400V - 1pc
CEE/IEC socket 32A,5P,400V  - 1pc
MCB 16A,1P,C - 1pc
MCB 32A,3P,C - 2pcs

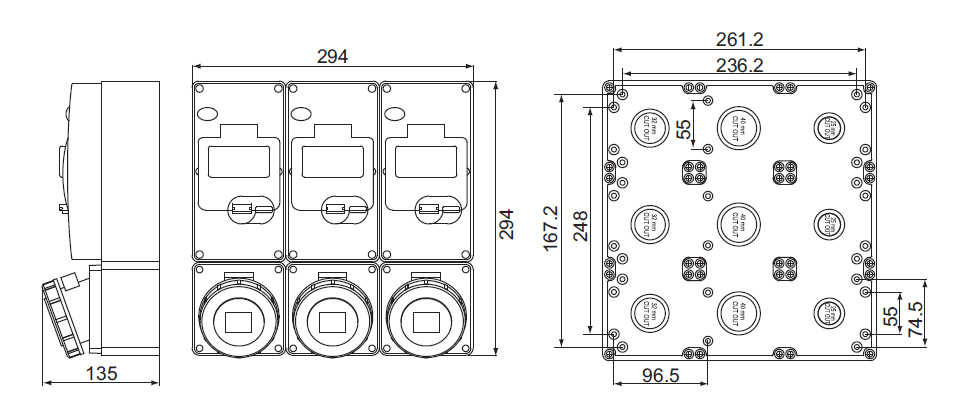

Dimension diagram:x4

Dimension Diagram

Dimension diagram:x1
Dimension diagram:x4
