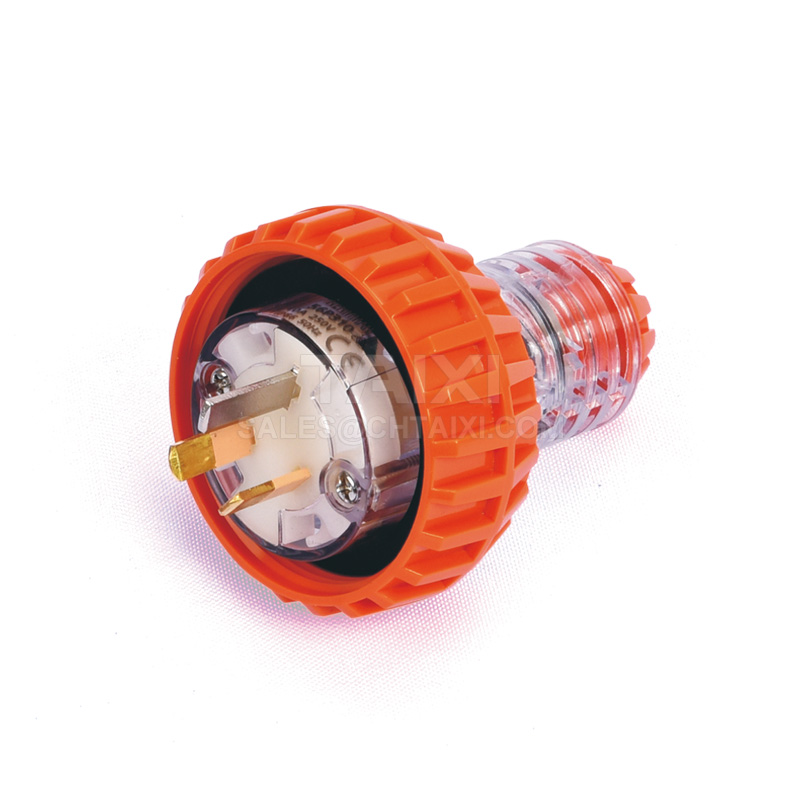

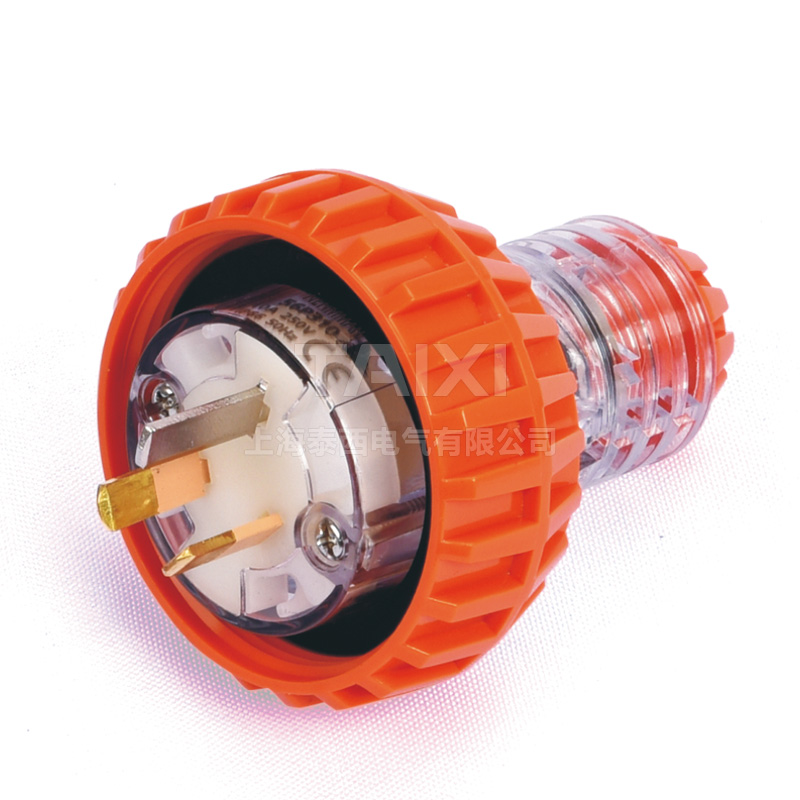

IP66 Australia Plug
Widely used in buildings, factories, outdoor power distribution, and other places with high humidity and dust
Product technical parameters
Product Introduction
Model & Specification
10A/3P-56P310 IP66 250V
10A/3P-56P310L IP66 250V
15A/3P-56P315 IP66 250V
13A/3P-56P313* IP66 250V
20A/3P-56P320F IP66 250V
20A/3P-56P320 IP66 250V
32A/3P-56P332 IP66 250V
Structure & Technical Parameters
 | ||||||||
| 250V Plug Pin configurations of 56 series single-phase plugs are 10A, 15A, 20A and 32A, which are suitable for Australia and New Zealand market, and 13A square pin configuration suitable for the UK market. The protection level of all plugs is IP66. | ||||||||
| Model | Rated Operating Voltage （V)Ue（-50Hz) |
Rated Dense Current （A） |
Pins（include grounding） | Pin Configuration |
Cable Entry Diameter | Capacity mm² | ||
| Minimum | Maximum | Minimum |
Maximum |
|||||
| 56P310 straight | 250 | 10 | 3 |  |
6 | 9 | 0.75 | 1.5 |
| 56P310L straight | 250 | 10 | 3 |  |
6 | 9 | 0.75 | 1.5 |
| 56P315 straight | 250 | 15 | 3 |  |
8 | 11 | 1.0 | 1.5 |
| 56P313* straight | 250 | 13 | 3 |  |
6 | 10 | 0.75 | 1.5 |
| 56P320F straight | 250 | 20 | 3 |  |
7 | 16 | 1 | 6 |
| 56P320 straight | 250 | 20 | 3 |  |
7 | 16 | 1 | 6 |
| 56P332 straight | 250 | 32 | 3 |  |
10 | 27 | 2.5 | 16 |
| Dimension diagram：x1 | ||||||||
Dimension diagram
 |
| Dimension diagram :x1 |
