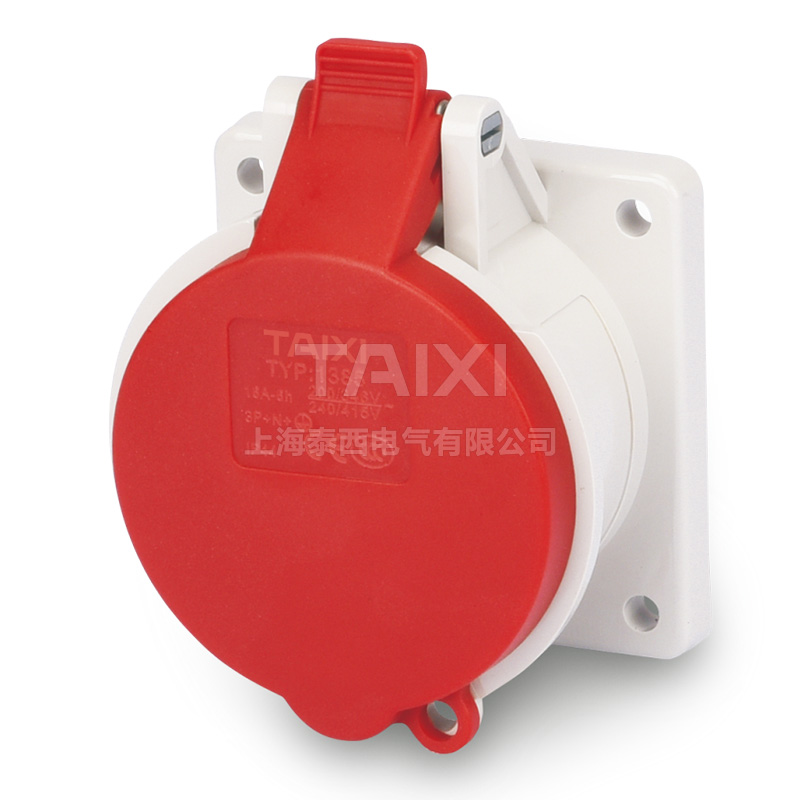

Panel Mounted Industrial Socket - Additional Socket




Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

READ PDF DOWNLOAD PDF
  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

Outdoor panel mounted waterproof industrial socket is divided into 3 cores, 4 cores, 5 cores, etc.
Current: 16A、32A、63A、125A；
IP Grade: IP44、IP67.
Panel mounted industrial socket is designed for use with industrial waterproof plug and industrial connector.

Functions & Installation

Panel mounted waterproof industrial socket can be mounted on a metal plate, chassis, or machine and able to power the device by a removable plug.
● Protection level, conforming to IEC 60529 standard
● Protection level against external mechanical impact, in line with EN50102 standard: impact resistance K08
● Fire resistance and abnormal heat resistance, in accordance with C/EN60695-2-1 standard: 850℃ (glow-wire test)
● Material and installation:
○Flame Retardant Engineering Polymer Housing
○Pin and contact-tube accessories are made of high quality copper HPB59-1 with nickel plating up to 6 microns thick (for products over 63A), have good plugging and anti-corrosion features, also the overcurrent and overvoltage withstanding ability reaches the advanced level of China. The sealing ring is made of high-quality silica gel material with high aging resistance and service life more than 2 times that of similar products.
○Stainless steel transverse axles and springs
○Connection terminal: Rotary screw, not tight

Model & Specification

16A/3P-1366 IP44 230V
16A/4P-1390 IP44 400V
16A/5P-1385 IP44 400V
32A/3P-1395 IP44 230V
32A/4P-1399 IP44 400V
32A/5P-3451 IP44 400V

Model & SPEC Table

A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 1365 1366 1367   3054 3055
16 4 1388 1389 1390 1391 1392 1393
16 5 1384 1386 1385 3057 3059 3060
32 3 1394 1395 1396
32 4 1397 1398 1399 1400 1401 1402
32 5 3449 3454 3451 3452 3455 3447
16 3 TXS-B1345-4 TXS-B1345-6 TXS-B1345-9
16 4 TXS-B1445-4 TXS-B1445-9 TXS-B1455-6

△IP 44
Flange size 75×75mm（16A），85×75mm（32A），in-line type，additional socket
Flange size 65×65mm（16A），mounting size 52×52mm（One-piece）
Dimension diagram of panel mounted waterproof industrial socket：D001
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 1260 1261 1262
63 4 1246 1247 1248 1249
63 5 1250 1251 1252

△IP 44
Soft contact process, flange size 107×100mm，in-line type，additional socket
Dimension diagram of panel mountedf waterproof industrial socket：D002
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 1462 1463 1464   3186 3187
16 4 1465 1466 1467 1468 1469 1470
16 5 1471 1472 1473 3188 3189 3190
32 3 1491 1492 1493   3201 3202
32 4 1494 1495 1496 1497 1486 1487
32 5 1498 1499 1500 3191 3192 3193

△IP 44
Flange size 73.5×64mm（16A，3P），100×92mm，inward dip 20°，additional socket
Dimension diagram of panel mounted waterproof industrial socket：D003
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
63 3 1146 1147 1148
63 4 1149 1150 1151 1152
63 5 1153 1154 1155

△IP 44
Soft contact process，flange size 110×106mm，inward dip 20°，additional socket
Dimension diagram of panel mounted waterproof industrial socket：D004
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 217 218 219
16 4 220 221 222 223 224 225
16 5 226 227 228
32 3 229 230 231
32 4 232 233 234 235 236 237
32 5 238 239 240
63 3 1263 1264 1265
63 4 1122 1123 1124 1125
63 5 1126 1127 1128
16 3 TXS-B1365-4 TXS-B1365-6 TXS-B1365-9
16 4 TXS-B1465-4 TXS-B1465-9 TXS-B1465-6

△IP 67
Flange size 75×75mm（16A），85×75mm（32A），in-line type，additional socket
Soft contact process，flange size 107×100mm，in-line type，additional socket
Flange size 65x65mm（16A），mounting size 52×52mm（One-piece）
Dimension diagram of outdoor panel mounted waterproof industrial socket：D005
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
125 3   3380
125 4 1455 1456 1457 1458
125 5 1459 1460 1461 3283

△IP 67
Cage spring contact process, flange size 130×130mm，in-line type，additional socket
Dimension diagram of panel mounted waterproof industrial socket：D006
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
16 3 1474 1475 1476
16 4 1477 1478 1479 1480 1481 1482
16 5 1483 1484 1485
32 3 1501 1502 1503
32 4 1504 1505 1506 1507 1567 1568
32 5 1489 1490 1551
63 3 2179 2180 2181
63 4 203 204 205 206
63 5 207 208 209 3507

△IP 67
Flange size 73.5×64mm，（16A，3P）100×92mm，inward dip 20°，additional socket
Soft contact process，flange size 110×106mm，inward dip 20°，additional socket
Dimension diagram of outdoor panel mounted waterproof industrial socket：D007
A P 110V 230V 400V 500V >50-500V

50 a. 60HZ

 50 a. 60HZ 50 a. 60HZ 50 a. 60HZ 100-300Hz 300-500Hz
125 3   3575
125 4 210 211 212 213
125 5 214 215 216

△IP 67
Cage spring contact process, flange size 114×110mm，inward dip 15°, additional socket
Dimension diagram of panel mounted waterproof industrial socket：D008

Structure Diagram

Dimension diagram of panel mounted industrial socket：D001
Current(A) 16 32 16（One-piece）
Pole(P) 3 4 5 3 4 5 3 4
Dimensions a 75 75 75 85 85 85 65 65
b 75 75 75 75 75 75 60 58.9
c 54 54 54 64 64 64 60 58.9
d 60 60 60 60 60 60 52 52
e 60 60 60 60 60 60 52 52
f 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
g. 8 8 8 8 8 8 9 9
g.1 2 2 2 2 2 2 2 2
h 68 77 85 89 89 95 86 91.5
h1 1 5 9 12 12 12 7.5 10.5
k 28 28 28 32 32 32 21.2 22.1
l 50 54 57 62 62 65 50 54
Cross-sectional area of wire（mm2）
Minimum to Maximum		 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10 1.5-4 1.5-4
Dimension diagram of panel mounted industrial socket：D002
Current(A) 63
Pole(P) 3 4 5
Dimensions a 107 107 107
b 100 100 100
c 80 80 80
d 85 85 85
e 77 77 77
f 6.5 6.5 6.5
g. 12 12 12
g.1 2 2 2
h 113 113 113
k 55 55 55
l 90 90 90
Cross-sectional area of wire（mm2）
Minimum to Maximum
 6-25 6-25 6-25
Dimension diagram of panel mounted industrial socket：D003
Current(A) 16 32
Pole(P) 3 4 5/7 3 4 5/7
Dimensions a 73.5 100 100 100 100 100
b 64 92 92 92 92 92
c 52 58 58 62 626 62
d 60 85 85 85 85 85
e 52 77 77 77 77 77
f 5.3 5.3 5.3 5.3 5.3 5.3
g. 7 8 8 8 8 8
g.1 2 2 2 2 2 2
h 79 105 105 107 107 112
k 41 41 41 51 51 52
l 52 60 65 70 70 73
l1 60 65 72 82 82 86
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 25-10
Dimension diagram of panel mounted industrial socket：D004
Current(A) 63
Pole(P) 3 4 5
Dimensions a 110 110 110
b 106 106 106
c 85 85 85
d 85 85 85
e 77 77 77
f 6.2 6.2 6.2
g. 12 12 12
g.1 2 2 2
h 125 125 125
k 117 117 117
l 90 90 90
l1 103 103 103
Cross-sectional area of wire（mm2）
Minimum to Maximum
 6-25 6-25 6-25
Dimension diagram of panel mounted industrial socket：D005
Current(A) 16 32 63 16（一体式）
Pole(P) 3 4 5 3 4 5 3 4 5 3 4
Dimensions
 a 75 75 75 85 85 85 107 107 107 65 65
b 75 75 75 75 75 75 100 100 100 65 65
c 60 61 61 70 70 72 84 84 84 64 63
d 60 60 60 60 60 60 85 85 85 52 52
e 60 60 60 60 60 60 77 77 77 52 52
f 5.5 5.5 5.5 5.5 5.5 5.5 6.5 6.5 6.5 5.5 5.5
g. 8 8 8 8 8 8 12 12 12 9 9
g.1 2 2 2 2 2 2 2 2 2 2 2
h 83 88 95 99 99 105 113 113 113 81.1 87
k 78 85 95 103 103 110 55 55 55 21.2 22.1
l 50 54 57 62 62 65 90 90 90 50 54
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10 6-25 6-25 6-25 1.5-4 1.5-4
Dimension diagram of panel mounted industrial socket：D006
Current(A) 125
Pole(P) 3 4 5
Dimensions
 a 130 130 130
b 130 130 130
c 104 104 104
d 104 104 104
e 6.5 6.5 6.5
f 18 18 18
g. 2 2 2
g.1 122 122 122
h 135 135 135
k 48 48 48
l 95 95 95
Cross-sectional area of wire（mm2）
Minimum to Maximum
 25-70 25-70 25-70
Dimension diagram of panel mounted industrial socket：D007
Current(A) 16 32 63
Pole(P) 3 4 5/7 3 4 5/7 3 4 5
Dimensions
 a 73.5 100 100 100 100 100 110 110 110
b 64 92 92 92 92 92 106 106 106
c 52 59 62 64 64 66 85 85 85
d 60 85 85 85 85 85 85 85 85
e 52 77 77 77 77 77 77 77 77
f 5.3 5.3 5.3 5.3 5.3 5.3 6.2 6.2 6.2
g. 7 8 8 8 8 8 12 12 12
g.1 2 2 2 2 2 2 2 2 2
h 84 103 105 103 103 110 117 117 117
k 41 35 35 54 54 54 69 69 69
l 60 65 72 82 82 86 103 103 103
Cross-sectional area of wire（mm2）
Minimum to Maximum
 1.5-4 1.5-4 1.5-4 2.5-10 2.5-10 2.5-10 6-25 6-25 6-25
Dimension diagram of panel mounted industrial socket：D008
Current(A) 125
Pole(P) 3 4 5
Dimensions a 114 114 114
b 110 110 110
c 85 85 85
d 90 90 90
e 90 90 90
f 6.2 6.2 6.2
g. 13 13 13
g.1 2 2 2
h 135 135 135
i 135 135 135
k 103 103 103
R 47 47 47
Cross-sectional area of wire（mm2）
Minimum to Maximum
 25-70 25-70 25-70
