56PB Push Button Start Control Station 56/2PBS1

Product technical parameters

Product Introduction

There are five different combinations of stop and start control stations.

Under wet, dusty or dirty conditions, this control station is suitable for the control of motor starters on pumps, saws, compressors, lathes, processing devices and process lines.

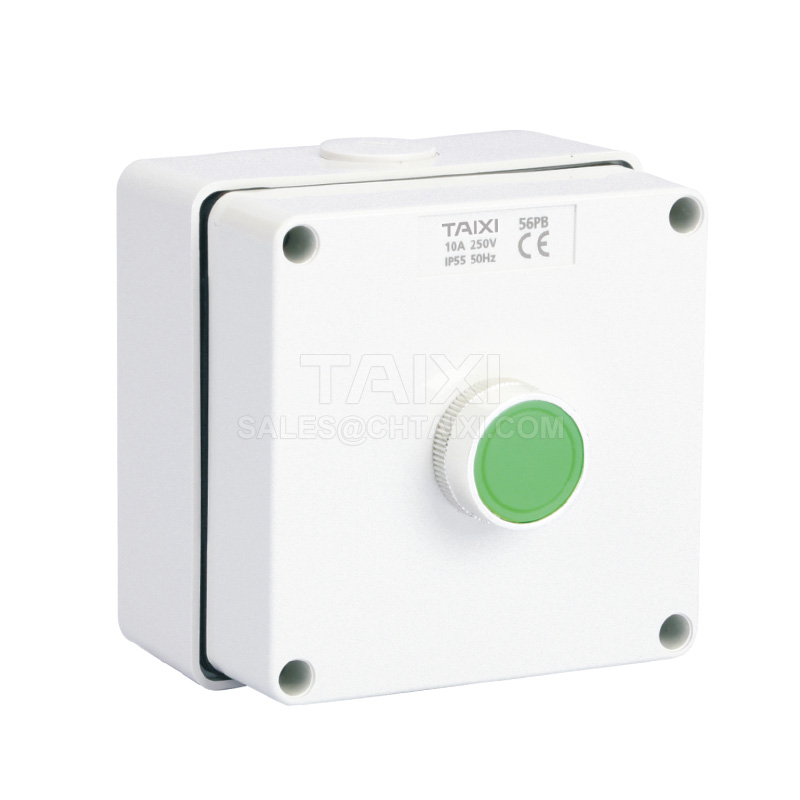

56PB - Start Control Station

56PBS - Stop Control Station

56PS1 - Emergency Stop Station, this station has a mushroom head, with rotating reset and red buttons.

56PBS2 - Stop Station, this station has a mushroom head, with a rotating reset and red button marked stop)

562PB - stop start combination station has instantaneous button. The red stop button has an extension, and the green start button has an immersion.

562PBSI - Stop Start Combination Station Stop Button is the same as 56PBS1.

Options

■Small case with 'LE' after model, e.g. 56PB plus 'LE' is 56PBLE.
■56PBS1, 56/2PB and 56/2PBS1 can be made in durable orange, mark 'RO' after model number, for example, 56PBS1RO.

Technical Parameters

Model	Ithe （A）	Ui/Ue （V）	lE（A）Rated Current		Button Color	Wire Terminal Size mm		IP Grade	Overall Dimensions （H）x（W）x（D）
Model	Ithe （A）	Ui/Ue （V）	AC 15 240V	DC13 24V	Button Color	Minimum	Maximum	IP Grade	Overall Dimensions （H）x（W）x（D）

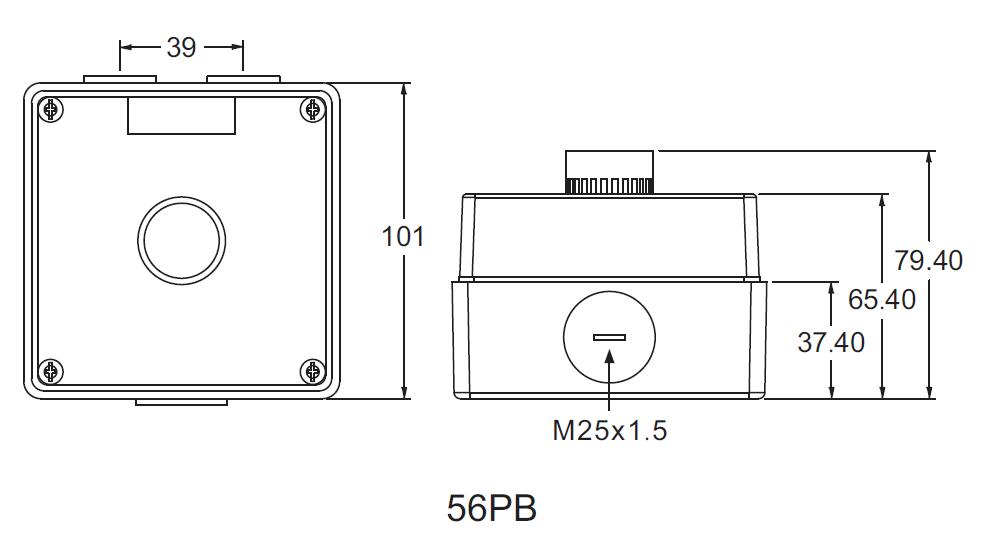

56PB	10	250	6	8	Green	1	4	66	107x101x79

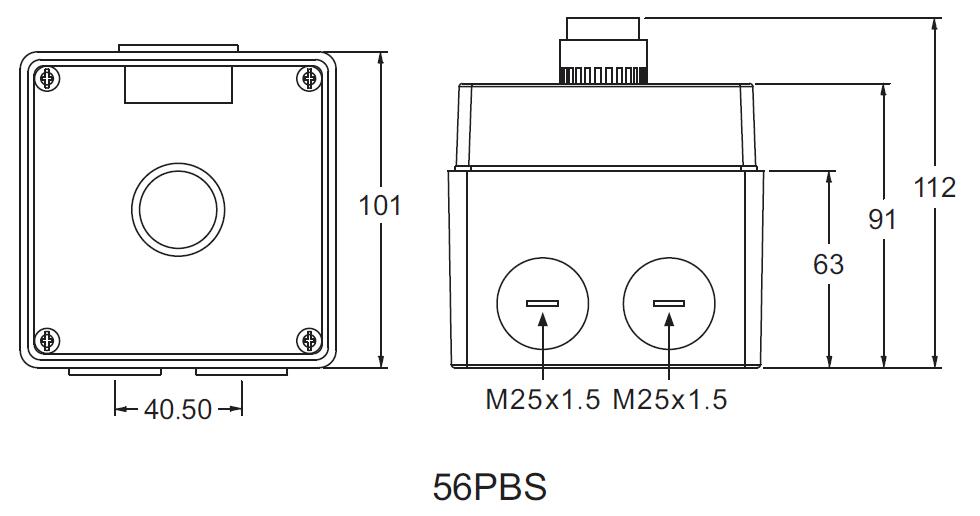

56PBS	10	250	6	8	Red	1	4	66	107x101x112

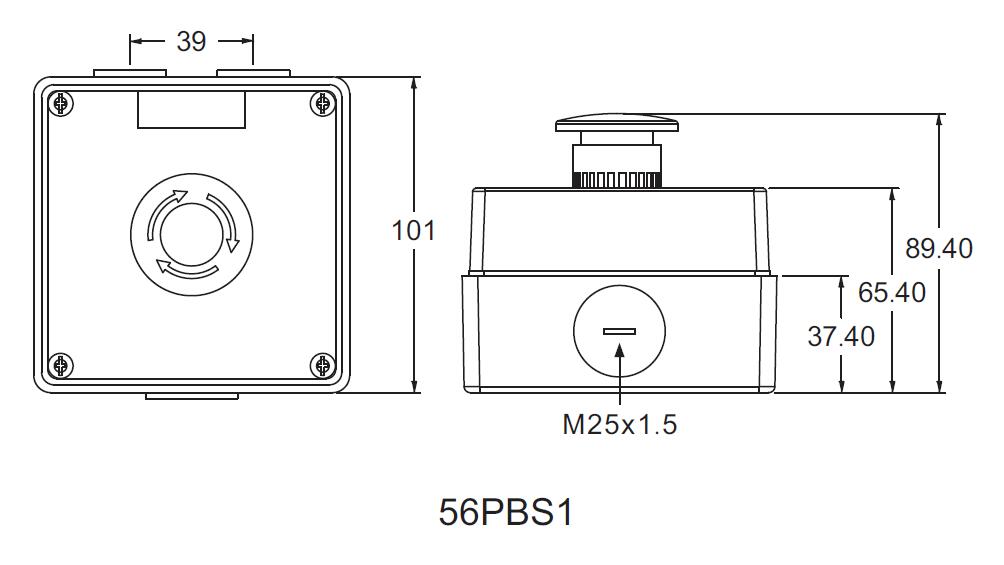

56PBS1	10	250	6	8	Red	1	4	66	107x101x89

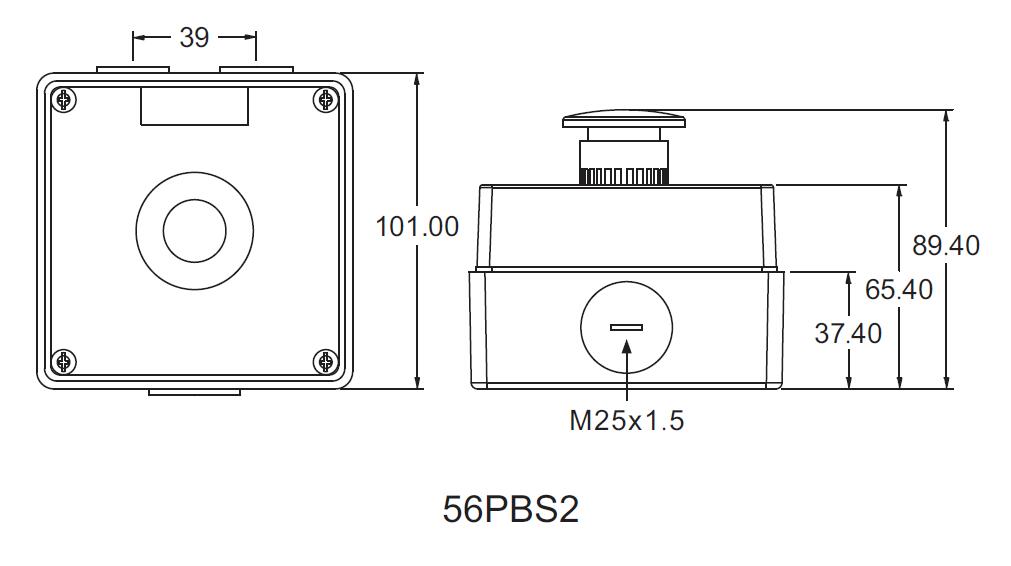

56PBS2	10	250	6	8	Red	1	4	66	107x101x89

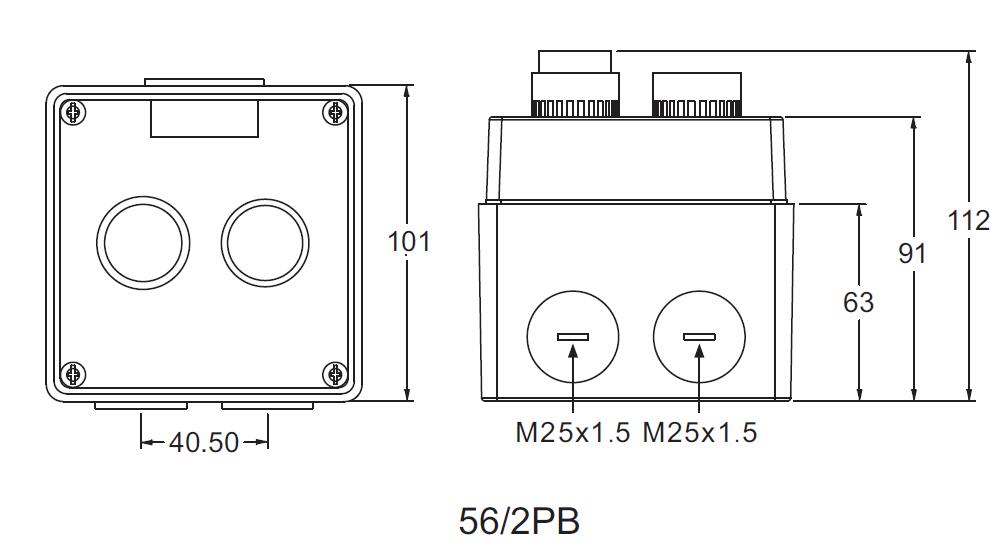

56/2PB	10	250	6	8	Red/Green	1	4	66	107x101x112

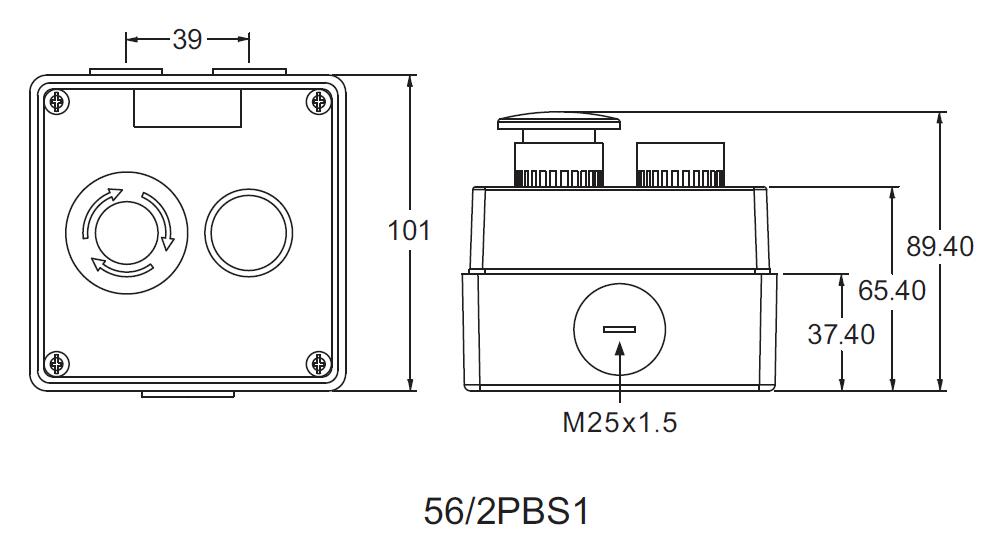

56/2PBS1	10	250	6	8	Red/Green	1	4	66	107x101x89
