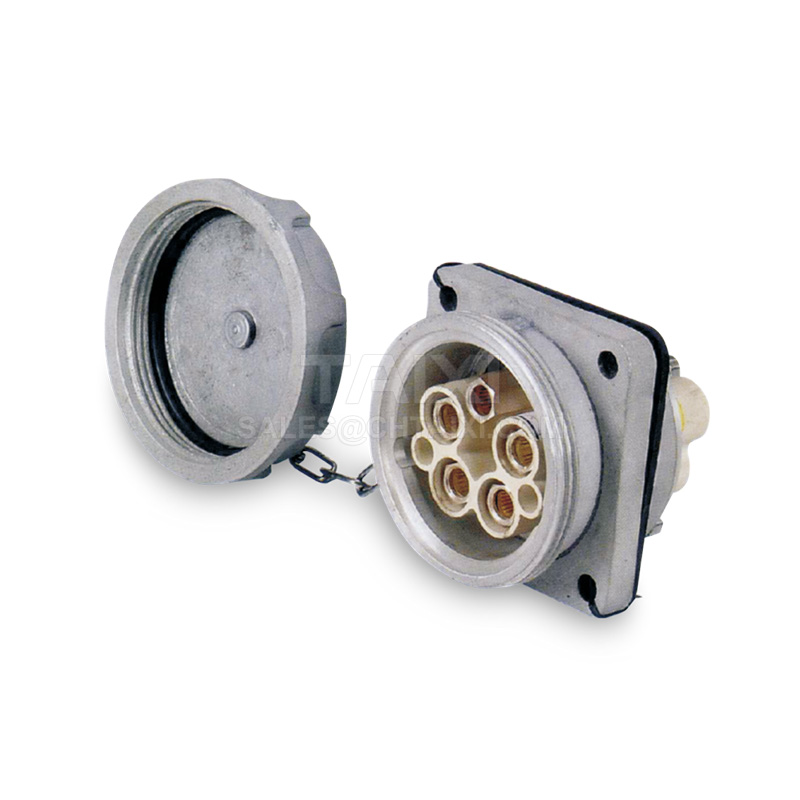

Large Current Socket Connector
Product technical parameters
Product Introduction
250A/5P-4032 IP66 400V
320A/4P-4042 IP66 400V
420A/4P-4052 IP66 400V
420A/5P-4062 IP66 400V
160A/4P-4101 IP66 400V
200A/4P-4111 IP66 400V
200A/4P-4121 IP66 400V
250A/4P-4131 IP66 400V
250A/4P-4141 IP66 400V
320A/4P-4171 IP66 400V
420A/4P-4181 IP66 400V
420A/5P-4191 IP66 400V
Model & SPEC Table
 |
 |
||||||
| A | P | 110V | 230V | 400V | 500V | >50-500V | |
|
50 a. 60HZ |
50 a. 60HZ | 50 a. 60HZ | 50 a. 60HZ | 100-300Hz | 300-500Hz | ||
| 250 | 4 | 4022 | |||||
| 250 | 5 | 4032 | |||||
|
△IP 66 |
|||||||
 |
|
||||||
| A | P | 110V | 230V | 400V | 500V | >50-500V | |
|
50 a. 60HZ |
50 a. 60HZ | 50 a. 60HZ | 50 a. 60HZ | 100-300Hz | 300-500Hz | ||
| 320 | 4 | 4042 | |||||
| 420 | 4 | 4052 | |||||
| 420 | 5 | 4062 | |||||
|
△IP 66 |
|||||||
 |
|
||||||
| A | P | 110V | 230V | 400V | 500V | >50-500V | |
|
50 a. 60HZ |
50 a. 60HZ | 50 a. 60HZ | 50 a. 60HZ | 100-300Hz | 300-500Hz | ||
| 160 | 4 | 4101 | |||||
| 200 | 4 | 4111 | |||||
| 250 | 4 | 4121 | |||||
| 250 | 5 | 4131 | |||||
| 320 | 4 | 4071 | |||||
| 420 | 4 | 4081 | |||||
| 420 | 5 | 4091 | |||||
|
△IP 66 |
|||||||
Dimension Diagram
 |
|||
| Dimension diagram：J002 | |||
| Current(A) | 250 | ||
| Pole(P) | 4 | 5 | |
| Dimensions | a | 132.25 | 132.25 |
| b | 130.25 | 130.25 | |
| c | 122.75 | 122.75 | |
| d | 92 | 92 | |
| b | 92 | 92 | |
| Max. cable diameter（mm） Cross-sectional area of wire（mm2） Minimum to Maximum |
70-90 | ||
 |
||||
| Dimension diagram：J004 | ||||
| Current(A) | 320 | 420 | ||
| Pole(P) | 4 | 4 | 5 | |
| Dimensions | a | 396 | 396 | 396 |
| b | 252 | 252 | 252 | |
| c | 138 | 138 | 138 | |
| d | 228 | 228 | 228 | |
| c | 208 | 208 | 208 | |
| Max. cable diameter（mm） Cross-sectional area of wire（mm2） Minimum to Maximum |
90-120 | |||
 | ||||||||
| Dimension diagram：J005 | ||||||||
| Current(A) | 160 | 200 | 250 | 320 | 420 | |||
| Pole(P) | 4 | 4 | 4 | 5 | 4 | 4 | 5 | |
| Dimensions | a | 314 | 314 | 314 | 314 | 366 | 366 | 366 |
| b | Φ131 | Φ131 | Φ131 | Φ131 | 200 | 200 | 200 | |
| c | 300 | 300 | 300 | |||||
| Max. cable diameter（mm） Cross-sectional area of wire（mm2） Minimum to Maximum |
35 | 50 | 70-90 | 90-120 | ||||
