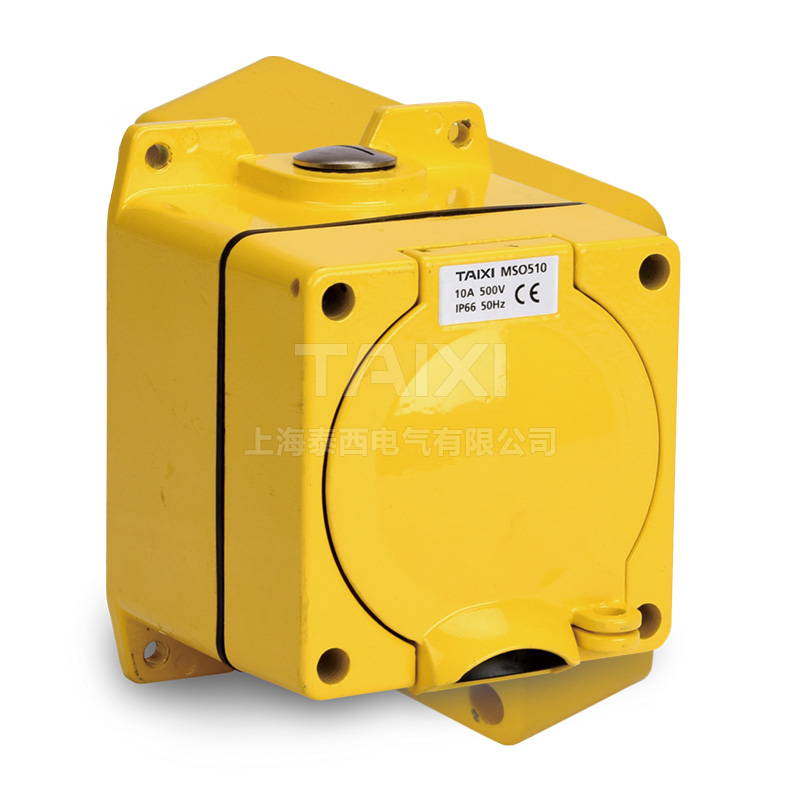

MSO Waterproof Metal Socket




Email: SALES@CHTAIXI.COM
WhatsApp: 0086-15669851253
Skype: TAIXI WATERPROOF

  • Product technical
    parameters
  • Product package&
    size&weight
  • Relevant
    information
  • Product related
    video
Product technical parameters

Product Introduction

1. The product is made of high-crystalline metal with high insulation, anti-impact and ultraviolet resistance.
2. Internal wiring of socket and switch, saving assembly time
3. The switch with indicator can directly show whether the current passes through or not.
4. Waterproof ring and waterproof cap ensure that the product reaches IP66 waterproof grade.
5. Opening the socket users can intuitively see the internal working environment of the socket and pin configuration.

Product Overview

1、Waterproof Grade:IP66;
2、Standard Color:Yellow;
3、Applicable Standard:AS/NZS3123:2005AS/NZS3133:2008
4、Applicable Environment:moistureproof, waterproof, dustproof, anti-corrosion, can work in extremely harsh environment.
5、The whole product series includes 3 pins, 4 pins and 5 pins; 10A~50A

Model & Specification

10A/3P-MSO310 IP66 250V
15A/3P-MSO315 IP66 250V
20A/3P-MSO320 IP66 250V
32A/3P-MSO332 IP66 250V
10A/4P-MSO410 IP66 500V
20A/4P-MSO420 IP66 500V
32A/4P-MSO432 IP66 500V
40A/4P-MSO440 IP66 500V
50A/4P-MSO450 IP66 500V
10A/5P-MSO510 IP66 500V
20A/5P-MSO520 IP66 500V
32A/5P-MSO532 IP66 500V
40A/5P-MSO540 IP66 500V
50A/5P-MSO550 IP66 500V

Structure & Technical Parameters


MSO310 MSO315 MSO320 MSO332 MSO410

3P 10A 250V

3P 15A 250V

3P 20A 250V

3P 32A 250V

4P 10A 500V
MSO420 MSO432 MSO440 MSO450 MSO510

4P 20A 500V

4P 32A 500V

4P 40A 500V

4P 50A 500V

5P 10A 500V
MSO520 MSO532 MSO540 MSO550

5P 20A 500V

5P 32A 500V

5P 40A 500V

5P 50A 500V

Dimension diagram:x3
Structure diagram:c3

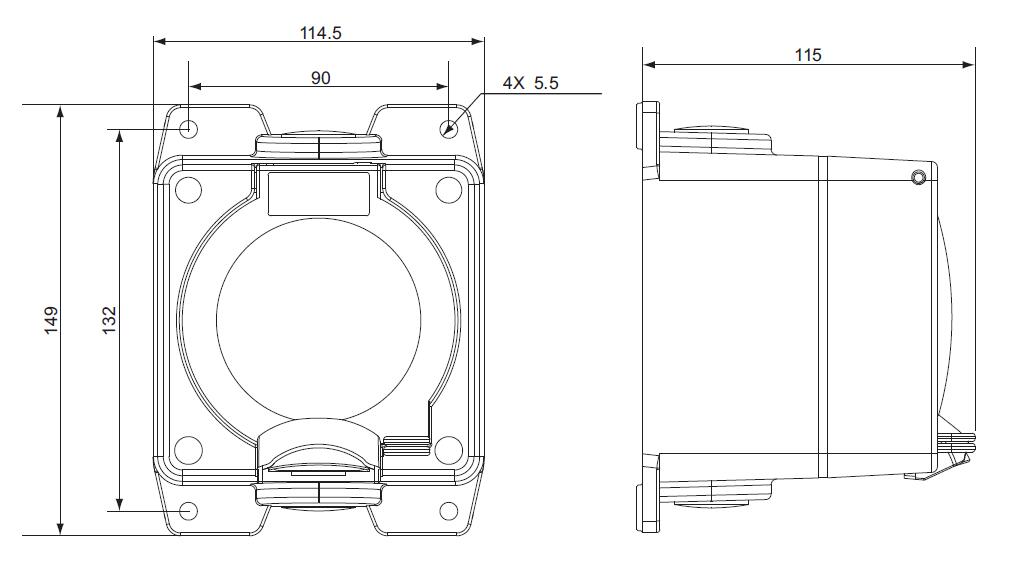

Dimension Diagram

Dimension diagram :x3

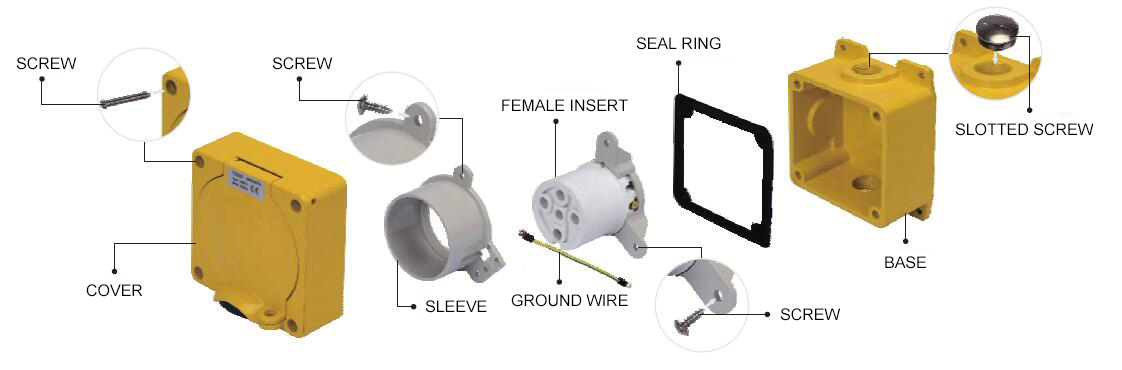

Structure Diagram


Structure diagram :c3
